Austrian Audio OC818 Multi-pattern Large-diaphragm Condenser Microphone – Black

Austrian Audio OC818 Multi-pattern Large-diaphragm Condenser Microphone – Black

Designed by a team of former AKG personnel, the Austrian Audio OC818 Studio Set is a large-diaphragm studio condenser microphone offering detailed audio capture and immense sonic customization for producers and engineers in personal and commercial recording facilities. The handmade 1″ ceramic capsule features two gold-plated polymer membranes to enable multiple polar patterns. Utilize the 5-position switch to set the OC818 to figure-8, hypercardioid, cardioid, omnidirectional, or wide cardioid. Each diaphragm is routed to a separate output connector for dual-channel recording, which allows you to design custom polar pattern responses across five frequency bands via the open-source PolarDesigner plug-in or achieve a tweakable stereo image thanks to the StereoCreator plug-in (also open-source).

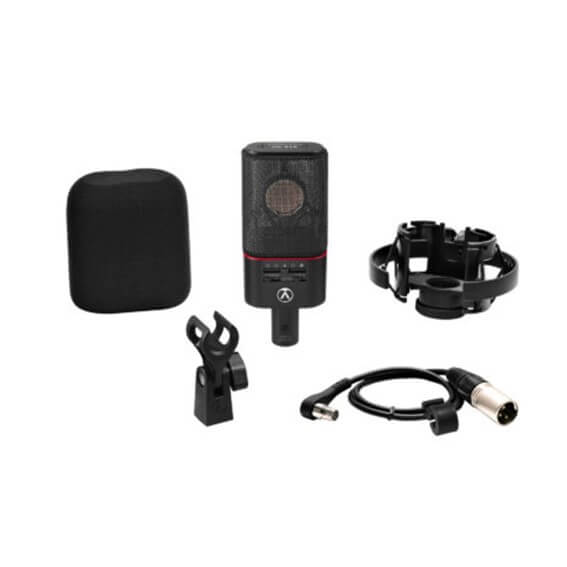

Alternatively, the secondary output can be connected to the optional OCR8 Bluetooth module if you wish to enjoy convenient wireless control and selection of 255 polar patterns via the free iOS/Android PolarPilot app. Front-panel switches are provided for easy access to the pad and roll-off settings. Set the pad to -10 or -20 dB to avoid distortion when miking loud sources such as drums or guitar cabinets. Activate the high-pass filter at 40, 80, or 160 Hz for attenuation of low-frequency problems including rumble and proximity effect. The OC818’s housing is constructed of zinc-aluminum alloy for strength and durability. The OC818 Studio Set includes a vibration-reducing shockmount, a traditional mic clip, a mini 5-pin XLR to 3-pin XLR cable, a windscreen for mitigating noise from breaths and blasts of air, and a protective carry case.

Austrian Audio OC818 Specifications

Microphone

• Primary Applications Studio Recording
• Form Factor Large Diaphragm Mic / Stand/Boom Mount
• Intended Sound Sources Vocals, Instrument
• Sound Field Mono
• Operating Principle Pressure Gradient
• Capsule Condenser
• Diaphragm 1″ / 25.40 mm
• Polar Pattern Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid/Wide Cardioid
• Pattern Selection Switched (Adjustable on Mic)
• Orientation Side Address
• Circuitry Solid-State
• Pad -10 dB, -20 dB
• High-Pass Filter 40 Hz, 12 dB/Octave, 80 Hz, 12 dB/Octave, 160 Hz, 6 dB/Octave
• Tone Adjustment None
• Gain Adjustment None
• Indicators None
• On-Board Controls High-Pass Filter, Pad, Polar Pattern
• Windscreen Foam (Included)

Performance

• Frequency Range 20 Hz to 20 kHz
• Maximum SPL 148 dB SPL
• Impedance 275 Ohms
• Load Impedance > 1000 Ohms
• Sensitivity 13 mV/Pa
• Equivalent Noise Level 9 dB SPL A-Weighted
• Connectivity
• Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic), 1 x TB5M 5-Pin Male (on Mic)
• Headphone Connector None

Power

• Bus Power None
• Operating Voltage 48 V ± 4 V (Phantom Power)
• Operating Current Consumption 4 mA

Physical

• Mounting Mic Clip/Stand Adapter, Shockmount (Included)
• Included Case Hard Case
• Included Filters None
• Construction Material Zinc Alloy
• Operating Temperature 32 to 131°F / 0 to 55°C
• Storage Temperature -13 to 140°F / -25 to 60°C
• Dimensions H: 1.4 x W: 2.5 x L: 6.2″ / H: 3.5 x W: 6.3 x L: 15.7 cm
• Weight 12.7 oz / 360 g

Precision Capsule

• CKR12 ceramic capsule is handmade in-house at Austrian Audio’s facility in Vienna
• Made to the same critical dimensions as the classic CK12 capsules
• Matched within 1 dB of every other OC18 or OC818 to allow the creation of stereo pairs (additional microphones available separately)
