Product Description

BASSBOSS DV12-MK3 3,200-watt Single 12-inch Powered Speaker

  • Makes it all Good, You are a mobile DJ or you have a production company. Your reputation is valuable. Your time is valuable. You want a speaker that’s flawless for every gig you do. If you need to cover the largest number of people with the smallest number of boxes, you’re looking at the right loudspeaker.
  • Fulfilling Full-Range, Because almost every gig you do is in a similar sort of space. Because at almost every gig you do, your speakers are on stands, poles, tripods, or truss totems. Because the DV12 is the only speaker in the world that’s been designed specifically and exclusively for exactly what you do.
  • Get High Go Low, Every feature of the DV12 serves to deliver the ideal performance in its intended role: On a pole. Wide horizontal for wide rooms. Tight vertical for intelligibility at distance. Plenty of power so you can rock the party and plug-and-play processing for worry-free operation at any level.
  • Precision Player, A very powerful amplifier feeds the bulk of its power into a beast of a 4″ voice coil 12″ woofer The rest goes to a 3″ voice coil compression driver. The signals are controlled by a high-end DSP to ensure everything comes out loud, clear, smooth, and safe. The cabinet and horn control the coverage. It works. You play.



POWER OF MK3

  • MK3 Amp Update, There are all-new amplifiers in the MK3 series. Total power has increased, however, power allocated to woofers increased substantially. The higher output voltages provide more impact. Universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace of mind.
  • MK3 Enhanced DSP, The MK3 features an all-new 96kHz DSP. The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
  • ControlBASS Software, ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming developments can be added via easy remote updating.



SPECIFICATION

Specification Details

Loudspeaker Description

2-Way Active Single 12″ Self Powered, Vented, Direct-radiating Full-range

Frequency Response (±3 dB)

45 – 19,000Hz

Maximum Sustained Output

128 dB SPL 1m half-space

Max SPL (Peak)*

134 dB SPL 1m half-space

Nominal Dispersion (H° x V°)

120 x 20

Amplification

3200 W Class D, 2 channel; 2400W LF – 800W HF

Processing

Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

Electrical Connector Amp

USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside USA alternate connectors provided

Electrical Connector Mains

Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

Voltage Operating Range

100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

Current Draw 120V

4.6A (nominal)

Current Draw 240V

2.3A (nominal)

Signal Input Connector

XLR-F

Signal Output Connector

XLR-M (direct pass-through only)

Enclosure Type

Self-powered, bi-amplified, 2-way full-range. Direct radiating vented LF section, wave-guide-loaded HF section

Transducer Low Frequency

1 x 12” diameter (300mm) neodymium motor woofer with 4” (100mm) voice coil

Transducer High Frequency

1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4″ (35mm) exit mounted to isophasic wave guide

Cabinet Construction

CNC machined 15mm Birch plywood with internal bracing and dado joinery. 8 M10 fly points. 1 x 35mm steel pole socket

Exterior Finish

High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

Grille

Perforated, powder-coated steel

Dimensions (HxWxD)

24.63” x 14.5” x 19.1” (62.6 cm x 36 cm x 48.5 cm)

Net Weight

63 lbs. (28 kg)

Shipping Weight

74 lbs. (33 kg)

What’s Included

Loudspeaker, 15′ (5m) Power Cable, Manual, Warranty Card

Optional Covers

Heavy-duty padded nylon transport cover

Optional Hardware

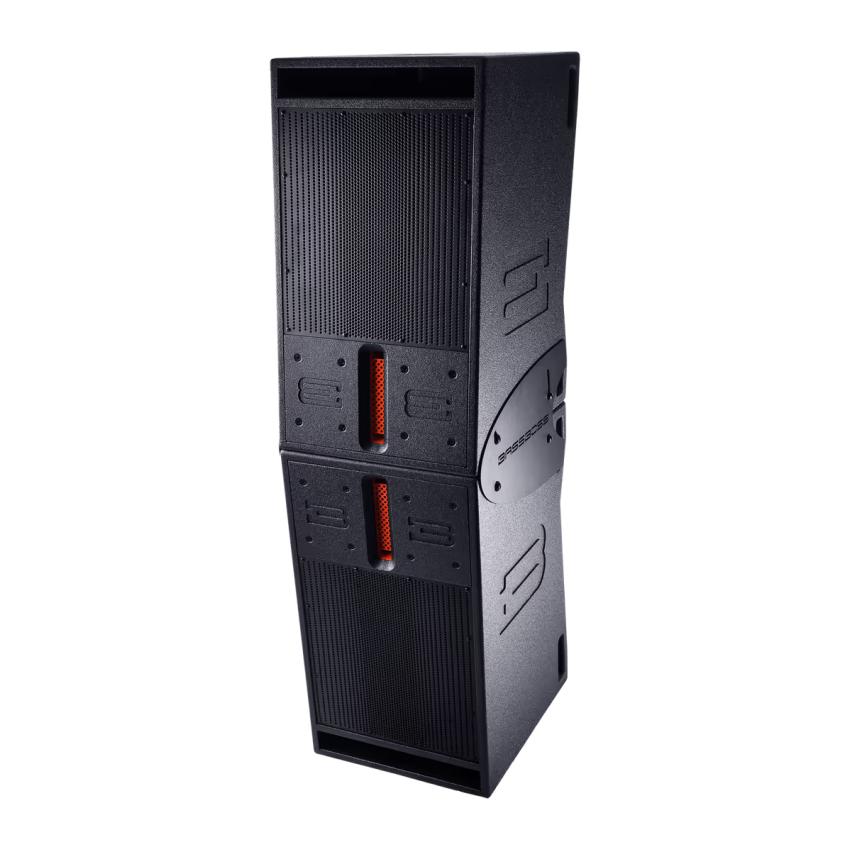

Stacking Bracket: mounts second cabinet inverted for near-perfect summed response and line-array style performance. Provides splay-angle adjustment from 0 to 8 degrees. Flying Bracket: Two DV12s can be arrayed together and flown from the DV12 array flying bracket. M10 Shoulder Eye Bolts, M10 Side-Pull anchors

Part Number

BB-DV12-MK3



True Specifications

At BASSBOSS, with the MK3 line we have stopped using “Peak” and “RMS” power ratings for our amplifiers because those numbers alone are not an accurate representation of the real-world performance you can expect from our powered loudspeaker systems.

‍

Peak Watts:

  • Essentially a theoretical maximum that the amplifiers could output for an instantaneous moment under ideal conditions with no load.
  • However, this peak power is not sustainable and has little practical relevance for how the loudspeakers will actually perform.

‍

RMS (root mean square) Watts:

  • A measure of continuous power output, but even this figure doesn’t account for the true efficiency of how that power is converted into acoustic output by the transducers and overall speaker design.
  • The number of watts a loudspeaker “uses” is constantly fluctuating based on the impedance curve, frequency response, and heat generated in the voice coils.
  • Simply looking at how many watts an amplifier can produce on a test bench doesn’t translate to its real-world sound output capability.



What matters most is the complete integrated loudspeaker system and how efficiently it can convert the amplifier’s power into acoustic output while maintaining flat frequency response and headroom. Two loudspeakers with the same wattage ratings could have vastly different real-world sound pressure levels and clarity.

For these reasons, we believe wattage ratings alone are not a reliable metric. Listening tests and measurements of the overall system’s output capabilities like maximum SPL and distortion are far more telling than any peak or RMS wattage number viewed in isolation.

Our goal is to provide outstanding performance through intelligent system design, not just big wattage numbers.
