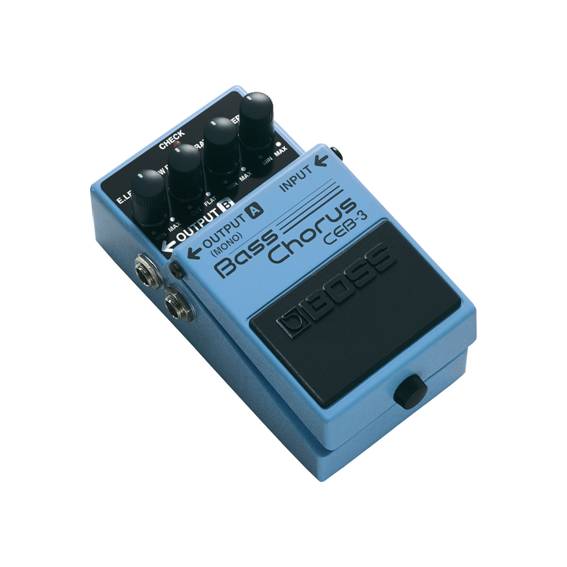

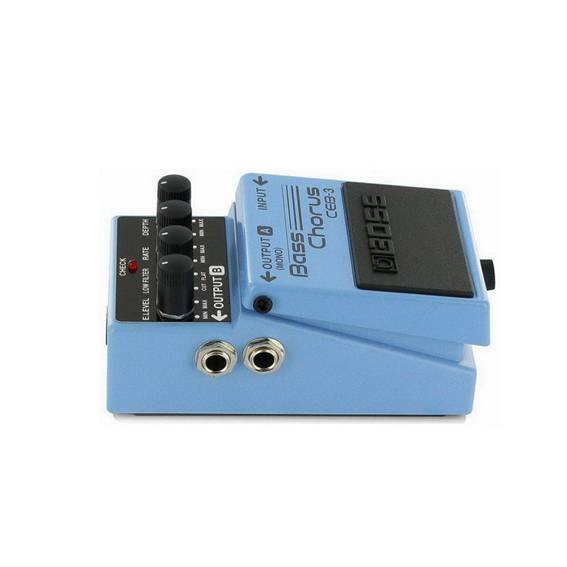

Boss CEB-3 Bass Chorus Pedal

Deskripsi Produk

A CHORUS PEDAL WITH BUILT-IN CROSSOVER

The CEB-3 Bass Chorus pedal offers a split-frequency chorus effect capable of applying warm, rich chorusing to the higher frequencies without muddying up the lows. It’s the perfect chorus pedal for bassists.

BOSS CEB-3 BASS CHORUS PEDAL FEATURES

• Compact chorus pedal especially designed for bass guitar
• Applies chorus sound to the high frequencies without altering low frequencies
• Effect Level, Low Filter, Rate and Depth knobs permit precise tonal shaping

SPECIFICATIONS

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
DEPTH (Modulation depth) knob
RATE (Modulation rate) knob
LOW FILTER knob
E.LEVEL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
55 mA

Expected battery life under continuous use
Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
