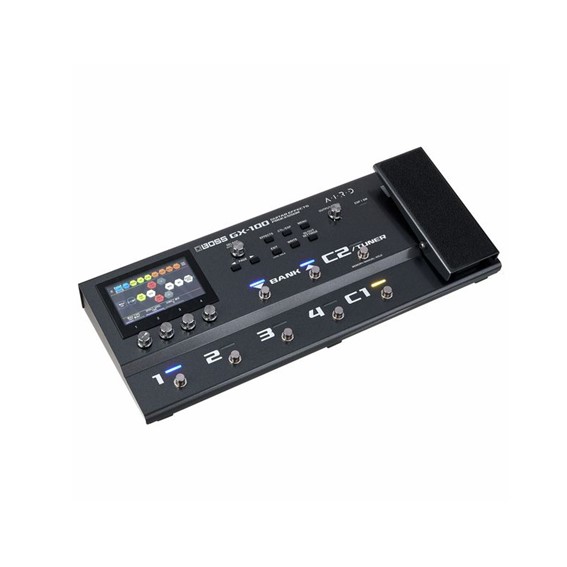

Boss GX-100 Guitar Multi-effects Pedal

Deskripsi Produk

Color Your Music with Inspiring Tone

Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 23 AIRD amplifiers and over 150 effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.

FEATURES

Powerful, easy-to-use amp/effects processor for guitar and bass
24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate
Authentic tube amplifier tone and touch response with AIRD technology
23 amplifier types and over 150 BOSS effects
Ultra-flexible amp/effect routing with 15 assignable blocks
Wide selection of onboard speaker types and support for loading WAV speaker IRs
Streamlined modern design with intuitive color touch display and rugged metal chassis
Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch
Connect up to two footswitches or an expression pedal for expanded control
Send/return loop for external pedals or four-cable method
Control jack for remote channel switching on your amplifier
MIDI I/O jacks and multi-channel computer recording via USB
Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
Download and share Livesets at BOSS Tone Exchange
Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

OTHER

Controls
BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1–4 switches, POWER switch, EXP1 switch, GND LIFT switch
EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1–4 knobs
SELECT knob, OUTPUT LEVEL knob, EXP1 pedal

Display
Color Graphic LCD (480 x 272 dots) Touch screen

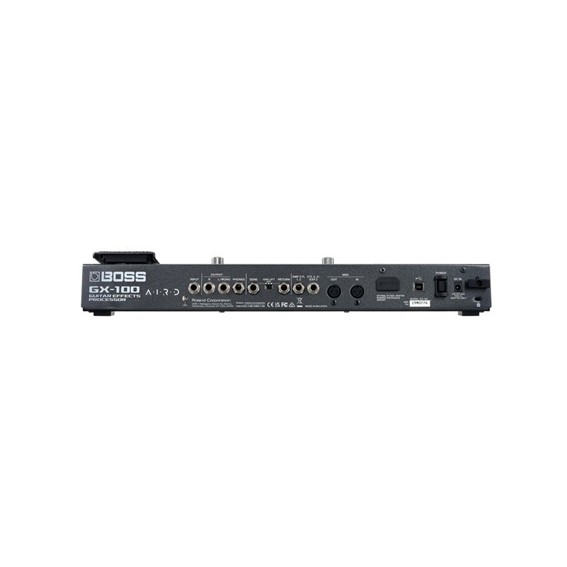

Connectors
INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
USB COMPUTER port: USB B type
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jack

Power Supply
AC adaptor

Current Draw
1.2 A

Accessories
AC adaptor (PSB-1U AC Cord Set)
Owner’s manual
Leaflet “USING THE UNIT SAFELY”

Options (sold separately)
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL
Carry Bag: CB-ME80
