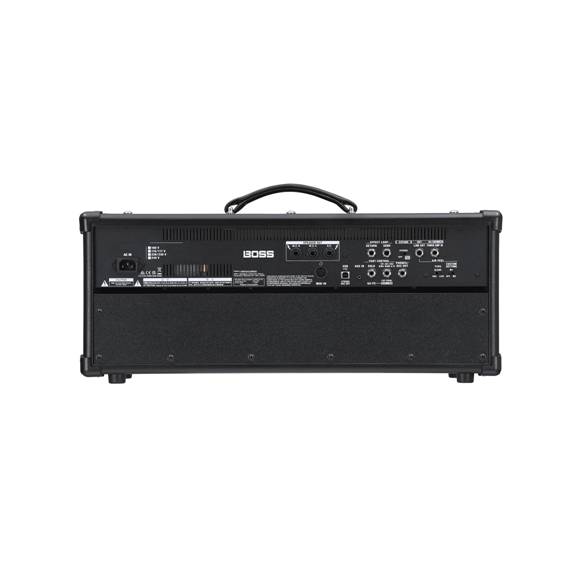

Boss Katana Artist Head MkII 100-watt Guitar Amp Head

Deskripsi Produk

Ultimate Katana Tone in a Powerful Amplifier Head
The Katana-Artist MkII Head brings you the premium sound and features of the flagship Katana-Artist MkII combo in a powerful 100-watt amplifier head. Cover any style with five amp characters and five variations, and color your tones with a wide range of onboard BOSS effects. Shape your voice with exclusive panel controls, including a three-way Contour switch, Global EQs, an adjustable Solo boost with dedicated delay, and five selectable Air Feel settings. And rock the stage with a roaring presence using the companion Katana Cabinet 212 Waza or your favorite external speaker cabs.

FEATURES

• Professional 100-watt amplifier head with enhanced tone and exclusive features
• Tube Logic design approach produces class-defying power, authoritative punch, and cutting presence
• Robust analog class-AB power amp section delivers authentic tone and highly musical response
• Five amp characters with five variations, plus Booster, Mod, FX, Delay, and Reverb sections with three variations in each
• Three-way Contour for shaping the overall tonal color and Global EQ switch with three settings (customizable in BOSS Tone Studio)
• Solo boost with onboard level control (dedicated delay and EQ can be applied to the Solo boost in BOSS Tone Studio)
• Integrated dual amp expansion functions for GA-FC/GA-FC EX control and true stereo effects
• BOSS Tone Studio editor software for customizing sounds with over 60 BOSS effects, pre and post EQs, dedicated Pedal FX, and more
• Series/parallel effect loop and power amp input for preamps, modelers, and multi-effects
• Eight Tone Setting memories for storing and recalling all amp and effect settings
• Power Control for achieving cranked-amp tone and response at low volumes
• Mic’d cabinet emulation on the line, USB, and phones/recording outputs
• Shape the cabinet emulation with five onboard Air Feel settings (three presets and two settings configurable in BOSS Tone Studio)
• External control support via GA-FC/GA-FC EX foot controller, footswitches, expression pedal, and MIDI
• Three speaker outputs: two 16-ohm and one 8-ohm (8-ohm maximum load supported)
• Optional speaker cabinet tuned for the Katana-Artist MkII Head: Katana Cabinet 212 Waza

SPECIFICATIONS

Rated Power Output
100 W

Nominal Input Level
INPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu (20 k ohms)
RETURN IN: -10 dBu (100 k ohm)

Controls
POWER switch
MASTER knob
PRESENCE knob
SOLO knob
GLOBAL EQ button
CONTOUR switch (OFF, 1, 2, 3)
POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)
CABINET RESONANCE switch (VINTAGE, MODERN, DEEP)

[AMPLIFIER]
AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
VARIATION button
GAIN knob
VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[MULTI EFFECT]
BOOSTER button
MOD button
FX button
DELAY button
REVERB button
TAP button
BOOSTER knob
MOD knob
FX knob
DELAY knob
REVERB knob

[TONE SETTING]
BANK button
CH1 button
CH2 button
CH3 button
CH4 button
PANEL button

[EXPAND]
EXPAND switch (OFF, STEREO, DUAL LINK)

[AIR FEEL]
TYPE switch (REC, BLEND, LIVE)
CUSTOM SETTING switch (OFF, M1, M2)

Indicators
ACOUSTIC
CLEAN
CRUNCH
LEAD
BROWN
VARIATION
BOOSTER
MOD
FX
DELAY
REVERB
TAP
BANK
CH1
CH2
CH3
CH4
PANEL
GLOBAL EQ

Connectors
INPUT jack: 1/4-inch phone type
POWER AMP IN/DUAL LINK jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
SPEAKER OUT 16 ohms A jack: 1/4-inch phone type
SPEAKER OUT 16 ohms B jack: 1/4-inch phone type
SPEAKER OUT 8 ohms jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo 1/4-inch phone type
EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
GA-FC/CTL SOLO/DUAL LINK jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
USB port: USB B type
MIDI IN connector
AC IN jack

Power Consumption
77 W

Accessories
Owner’s Manual
Power cord
GA-FC sticker

Options (sold separately)
Footswitch: FS-5L, FS-6, FS-7
Expression pedal: Roland EV-5, BOSS EV-30, FV-500L, FV-500H
Foot Controller: GA-FC, GA-FC EX
