Boss RC-500 Loop Station Compact Phrase Recorder Pedal

Dual-Track Powerhouse

The RC-500 is an essential partner for guitarists, singer/songwriters, multi-instrumentalists, and anyone who wants to take their looping to the next level. Craft real-time compositions with two loop tracks, mic and stereo instrument inputs, rhythms, and inspiring Loop FX, all backed by premium 32-bit audio quality. Store loops in onboard memories, and explore expanded operation with external controls and MIDI. Filled with next-generation Loop Station features, the RC-500 gives serious creators the tools they need to develop new ideas and deliver impactful performances that will leave audiences wanting more.

FEATURES

• Advanced two-track looper with onboard mixing and deep control options
• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
• Stereo looper engine with 13 hours of recording time
• LCD with multi-color backlight for viewing loop status and editing parameters
• Mono/stereo inputs for easy pedalboard integration, plus independent XLR mic input with phantom power
• Reverse function and Loop FX (repeat, scatter, shift, and vinyl flick) for dynamic and engaging loop performances
• 16 different drum kits and 57 preset rhythms with A/B variations
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Onboard storage for 99 phrase memories
• Back up and load WAV loops via USB
• Runs on four AA batteries or optional AC adaptor

SPECIFICATIONS

Sampling Frequency
44.1 kHz

AD/DA Conversion
32 bits

Processing
32-bit floating point

Recording/Playback
Number of Track: 2
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type
57 Patterns x 2 Variations

Rhythm Kit
16 types

Effect
LOOP FX (only for loop tracks)
Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK
Reverb (only for rhythm part)

Memory
99

Nominal Input Level
MIC IN:-40 dBu (variable)
INST IN A/MONO､B: -10 dBu

Maximum Input Level
MIC IN: 8 dBu
INST IN A/MONO, B: 8 dBu

Input Impedance
MIC IN: 4 k ohms
INST IN A/MONO, B: 1 M ohm

Nominal Output Level
OUTPUT A/MONO, B: -10 dBu

Maximum Output Level
OUTPUT A/MONO, B: 8 dBu

Output Impedance
OUTPUT A/MONO, B: 1 k ohm

Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater

Bypass
Buffered bypass

Controls
REC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT button

Display
Graphic LCD (96 x 32 dots, RGB backlit LCD)

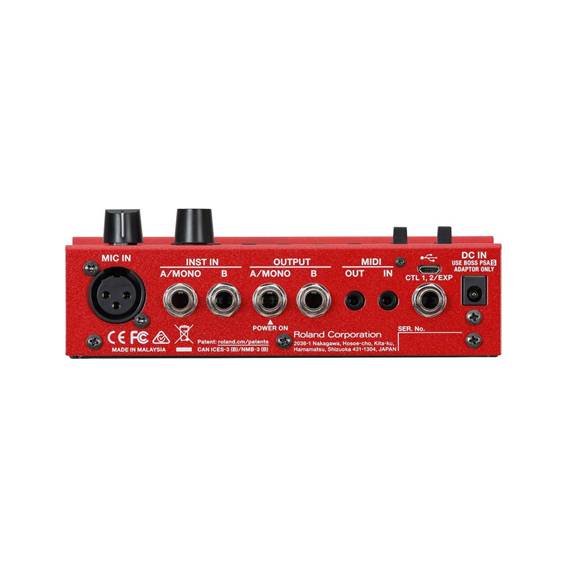

Connectors
INST IN A/MONO, B jacks: 1/4-inch phone type
MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB port: USB micro B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack

Power Supply
Alkaline battery (AA, LR6) x 4
AC adaptor (PSA-S series: sold separately)

Current Draw
330 mA (with phantom power)
240 mA (without phantom power)

Expected battery life under continuous use
Alkaline: Approx. 3.5 hours (without phantom power)
Approx. 2 hours (with phantom power)
*These figures will vary depending on the actual conditions of use.

Accessories
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (AA, LR6) x 4
Rubber foot x 4

Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
