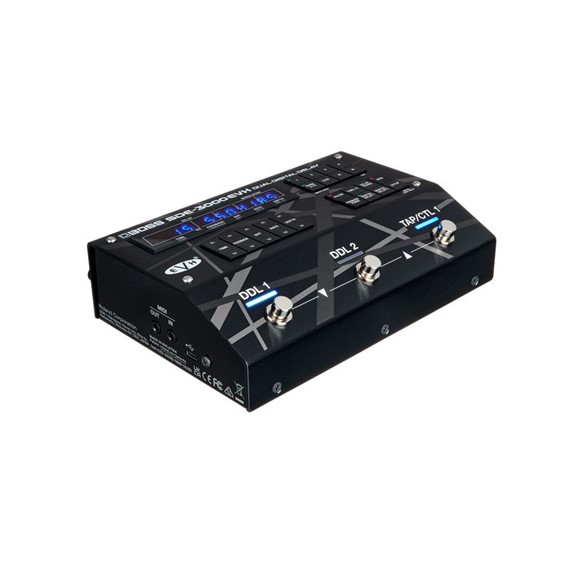

Boss SDE-3000EVH Dual Digital Delay Pedal

BOSS and EVH Unite to Bring You the Legendary Eddie Van Halen Dual Delay Sound

EVH and BOSS join forces to bring you the SDE-3000EVH Dual Digital Delay, an authentic recreation of the stereo delays at the heart of Eddie Van Halen’s massive three-cabinet live stage guitar sound. Based on the vintage Roland SDE-3000 rackmount delay, this powerhouse processor puts two fully featured SDE-3000s in one floor-based pedal, coupled with extensive connectivity to build a wet/dry/wet rig just like Eddie’s. You also get eight presets curated by EVH with the exact settings from his actual delay units, allowing you to experience the master’s expansive spatial delay tone in your own setup.

FEATURES

• Special edition dual delay pedal jointly developed by EVH and BOSS
• Based on the legendary Roland SDE-3000 rackmount digital delay from the 1980s
• Eight EVH presets with the exact settings from the two SDE-3000 delays in Eddie Van Halen’s live rig (the EVH presets are locked internally but allow for output level adjustments)
• Versatile connectivity for creating an EVH wet/dry/wet rig and integrating with various mono and stereo setups
• Classic appearance with the signature EVH logo and stripes
• Warm vintage digital delay sound with extended features for modern rigs
• Distinctive retro display and panel controls based on the original SDE-3000
• Includes two full-featured delays, each with independent parameters, mono/stereo modulation, and panning
• Widely adjustable delay time with two range settings: 0–1500 ms and 0–3000 ms
• Characterful modulation inspired by the original circuit design
• Phase switches for the primary delay and delay feedback loop
• Adjustable low-cut and high-cut filters for shaping delay feedback sounds
• Send/return functionality for patching in an effect pedal or using the four-cable method
• Selectable impedance on the effect return for optimizing tone with different amplifiers
• Selectable series or parallel operation for the two delays
• Save and recall sounds with 92 user memories
• Adjustable noise suppressor
• Assignable onboard footswitch control for tap tempo, hold, and more
• Jacks for extended operation with up to four footswitches, two expression pedals, or the GA-FC/GA-FC EX foot controller
• MIDI I/O on space-saving mini TRS jacks
• Includes three ground-lift cables for eliminating hum with multi-amplifier setups

SPECIFICATIONS

Sampling Frequency

48 kHz

AD Conversion

24 bits AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

32 bits

Processing

32-bit floating point

Effects

SDE-3000 STEREO DELAY x2
NOISE SUPPRESSOR
FOOT VOLUME

Memories

100

Nominal Input Level

INPUT MONO: -10 dBu
INPUT L/MONO: -10 dBu
RETURN/INPUT R: -10 dBu

Maximum Input Level

INPUT MONO: 12 dBu
INPUT L/MONO: 12 dBu
RETURN/INPUT R: 12 dBu

Input Impedance

INPUT MONO: 1 M ohm
INPUT L/MONO: 1 M ohm
RETURN/INPUT R: 1 M ohm or 180 k ohm (switching)

Nominal Output Level

OUTPUT (DIRECT, EFX L, EFX R): -10 dBu
OUTPUT (L/MONO, R): -10 dBu
SEND: -10 dBu

Output Impedance

OUTPUT (DIRECT, EFX L, EFX R): 1 k ohm
OUTPUT (L/MONO, R): 1 k ohm
SEND: 1 k ohm

Recommended Load Impedance

OUTPUT (DIRECT, EFX L, EFX R): 10 k ohms or greater
OUTPUT (L/MONO, R): 10 k ohms or greater
SEND: 10 k ohms or greater

Controls

TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1–4 buttons, BANK A/B button, EVH button, LEFT button, RIGHT button, FILTER button, TIME×2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button, DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch, GND LIFT switch, RETURN IMPEDANCE switch

Display

7 segments, 12 digits LED

Connectors

INPUT MONO jack, INPUT L/MONO jack, OUTPUT (DIRECT, EFX L, EFX R) jacks, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN/INPUT R jack: 1/4-inch phone type
CTL2,3/EXP1 jack, CTL4,5/EXP2/GA-FC jack: 1/4-inch TRS phone type

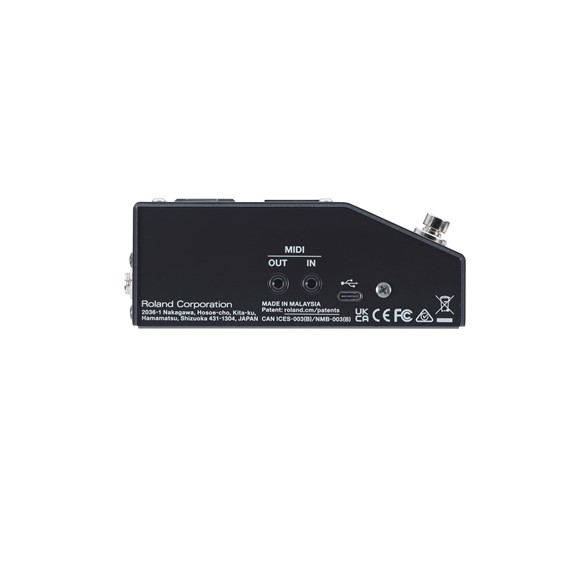

MIDI (IN, OUT) jacks: Stereo miniature phone type
USB port: USB Type-C(R)
DC IN jack

Power Supply

AC adaptor

Current Draw

450 mA

Accessories

AC adaptor (PSB-1U AC Cord Set)
GND LIFT CABLE x 3
STARTUP GUIDE
Leaflet “USING THE UNIT SAFELY”
Leaflet “USAGE OF GND LIFT CABLE”
Rubber foot x 4

Options (sold separately)

Footswitch: FS-5U, FS-5L
Dual footswitch: FS-6, FS-7
Expression Pedal: Roland EV-5, EV-30, FV-500L, FV-500H
Foot Controller :GA-FC, GA-FC EX
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
