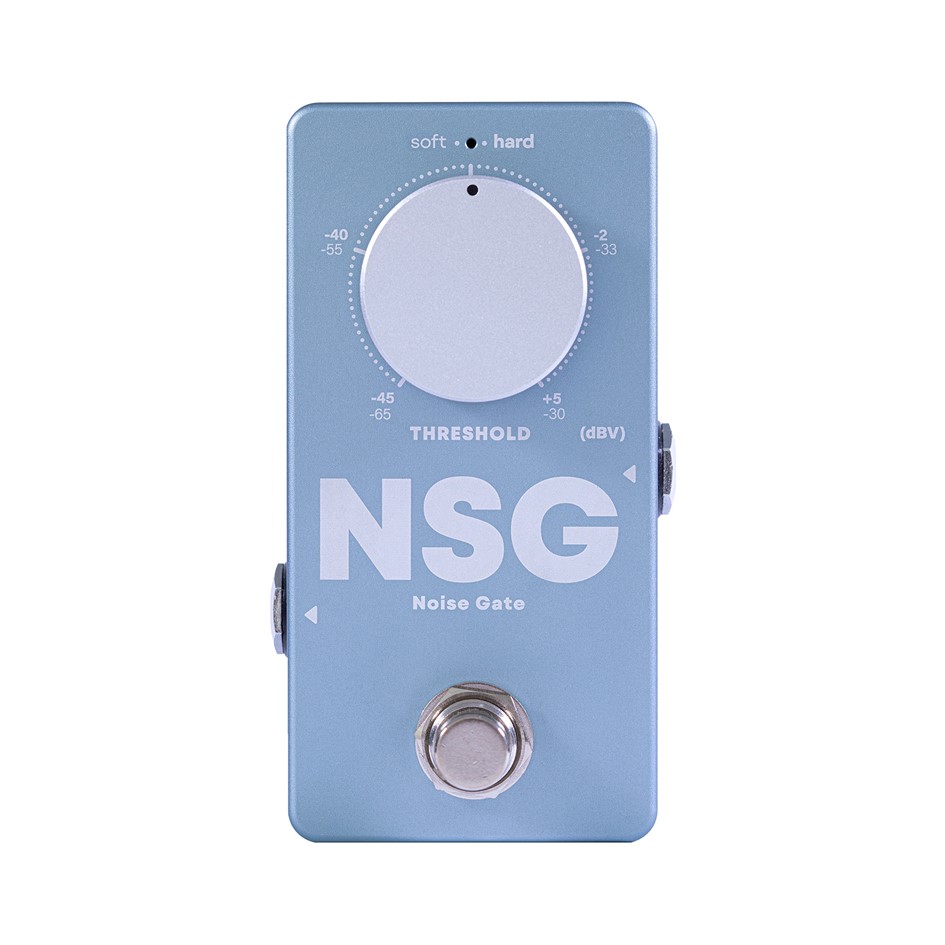

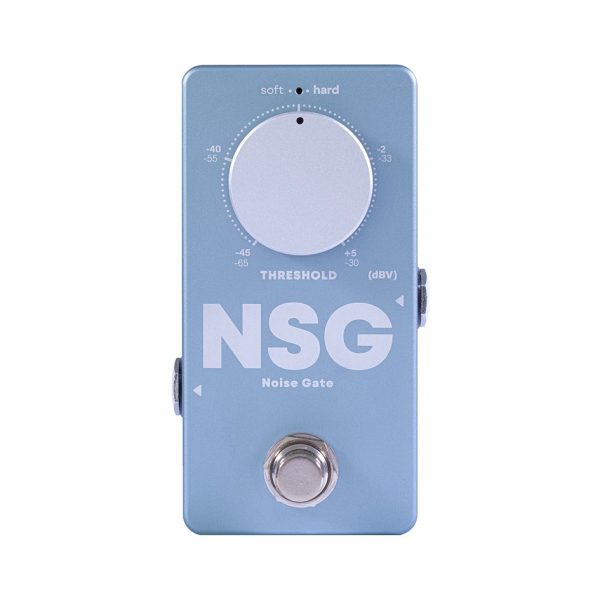

Darkglass NSG Noise Gate Bass Pedal

Threshold

Use this push knob to control the threshold of the noise gate. Press the knob to switch between the “Soft” mode (Blue LED color) for softer gain reduction and “Hard” (Red LED color) for the more aggressive gate operation.

Threshold range

From -65 dBV to -30 dBV in “Soft” mode.
From -45 dBV to +5dBV in “Hard” mode.

Dimensions

Width: 50 mm /2″
Length: 36,5 mm/ 1 ½″
Height: 100 mm / 4″
Weight: 205 g / 0,45 lb

Technical Specifications

Input Impedance: 1 MΩ
Output Impedance: 100 kΩ
Current Consumption: ~60 mA
Voltage 9V DC (Center Negative)

Warning

The NSG Noise Gate has a current draw of 60 mA. Only use a regulated 9V DC adapter with a center-negative plug.
