Deskripsi Produk

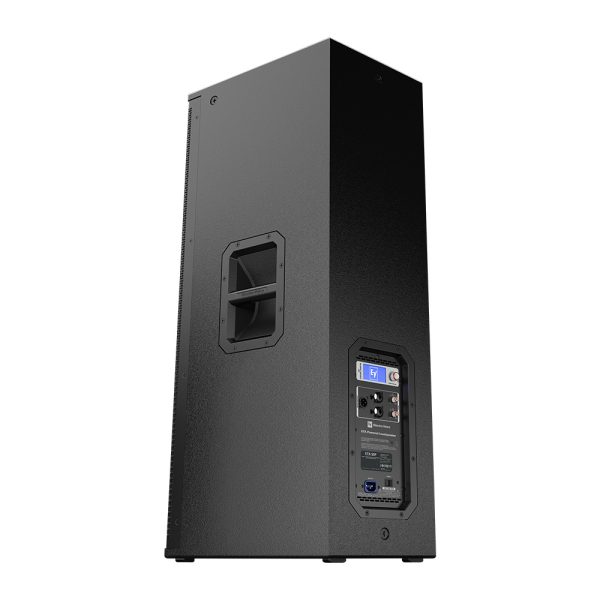

ETX-35P
15″ powered 3‑way loudspeaker
- 15-inch LF SMX woofer
- 6.5-inch MF driver
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 136 dB peak SPL
SPECIFICATIONS
Frequency Response (-3 dB) | 48 Hz – 20 kHz¹ |
Frequency Range (-10 dB) | 38 Hz – 20 kHz¹ |
Maximum SPL | 136 dB peak² |
SPECIFICATIONS |
Coverage (H x V) | 60° x 40° |
Power Rating | 2000 W |
LF Transducer | SMX2151 380 mm (15 in) |
MB Transducer | EVS-6C 6.5-in mid-bass driver |
HF Transducer | DH3-B 1.25-in titanium compression driver |
Crossover Frequency | 700 Hz, 2900 Hz |
Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
Enclosure | 18 mm, 13-ply birch plywood with EVCoat |
Grille | 16AWG steel with powdercoat |
Suspension | (8) M10 suspension points |
Dimensions (H x W x D) | 1023 mm x 469 mm x 426 mm (40 in x 18 in x 17 in) |
Net Weight | 38.2 kg (84.2 lb) |
Shipping Weight | 42.8 kg (94.4 lb) |
Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A³ |
Berat | 43 kg |
---|
