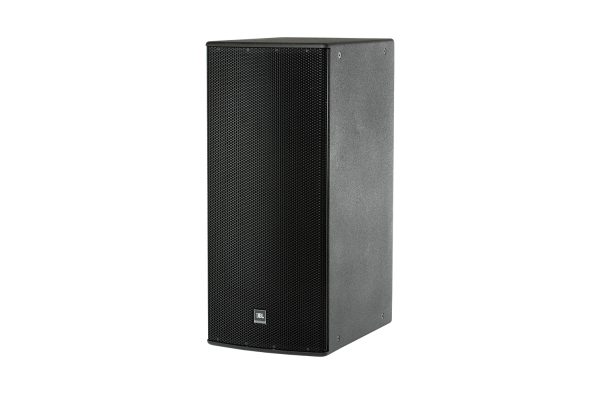

JBL ASB6125, Application Engineered Series ASB6125

76x Telah Dilihat

Harga saat ini adalah: Rp 52.352.000. Harga aslinya adalah: Rp 65.440.000.

Stok: Tersedia

Harga saat ini adalah: Rp 52.352.000. Harga aslinya adalah: Rp 65.440.000.

Stok: Tersedia

Tambah Ke Keranjang
SKU: ASB6125 Kategori: Brand:

Deskripsi Produk

JBL ASB6125, Application Engineered Series ASB6125

2-Way Loudspeaker System
with 1 x 12″ LF
The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES
∧
  • 60° x 40° Coverage
  • 262H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes

APPLICATIONS
^
  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues



SPECIFICATIONS
^
Frequency Range (-10 dB) 37 Hz – 20 kHz
Frequency Response (±3 dB) 43 Hz – 18 kHz
Coverage Pattern /64: 60° x 40°
/66: 60° x 60°
/95: 90° x 50°
/00: 100° x 100°
/26: 120° x 60°
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.5 kHz
Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs
300 W (1200 W peak), 100 hrs
HF: 40 W (160 W peak), 2 hrs
Long-Term System Power Rating (IEC) Passive mode: 300 W (1200 W peak), 100 hrs
Maximum SPL Bi-amp mode:
LF: 122 dB
HF: 131 dB
System Sensitivity (1W @ 1m) Passive mode: 115 dB SPL
Low Frequency Driver 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m, within operational band) 97 dB SPL
High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Nominal Impedance 8 ohms
Sensitivity (1W @ 1m) 113 dB SPL
Waveguide PT-H126HF-1
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex™ finish. White available upon request.
Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in
vertical cabinet orientation)		 713 x 371 x 458 mm
(28.06 x 14.6 x 18.1 in)
Net Weight 20.2 kg (45 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
Berat 36 kg
