Deskripsi Produk

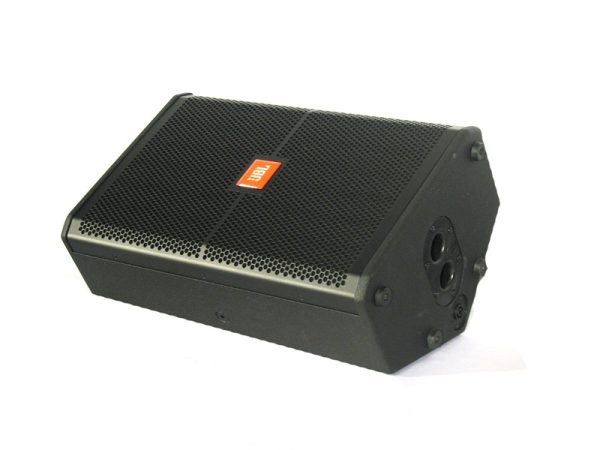

JBL SRX712M
12″ High-Power Two-Way Stage Monitor
The SRX712M was designed with one goal – build the lightest, smallest, loudest, clearest stage monitor possible while delivering strikingly professional appearance.
FEATURES
- Compact and low-profile for minimal obstruction of audience sight-lines.
- 90°x 50° nominal coverage.
- Bi-amplified or full-range passive operation.
- Dual-angle pole socket for applications requiring tripod mounting.
- Optional yoke available for trussmounted or suspended applications.
- Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.
- 3 in (diaphragm) neodymium magnet compression driver.
SPECIFICATIONS
Power Rating | 800 W / 1600 W / 3200 W | |
Frequency Range | 70 Hz – 20kHz (-10 dB) | |
Dimensions (H x W x D) |
349 mm x 546 mm x 260 mm (13.75 in x 21.5 in x 10.25 in) |
|
Frequency Response | 83 Hz – 18 kHz (±3 dB) | |
Coverage Pattern | 90º x 50º nominal | |
Net Weight | 15 kg (33 lb) |
Berat | 20 kg |
---|
