LD Systems Roadbuddy 10 Inch 480w portable speaker w/ wireless handheld ( B6 655 – 679 MHz )

Deskripsi Produk

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates with 655 – 679 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10B6) or as an alternative a headset microphone with belt pack (LDRBUD10HSB6) and an IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

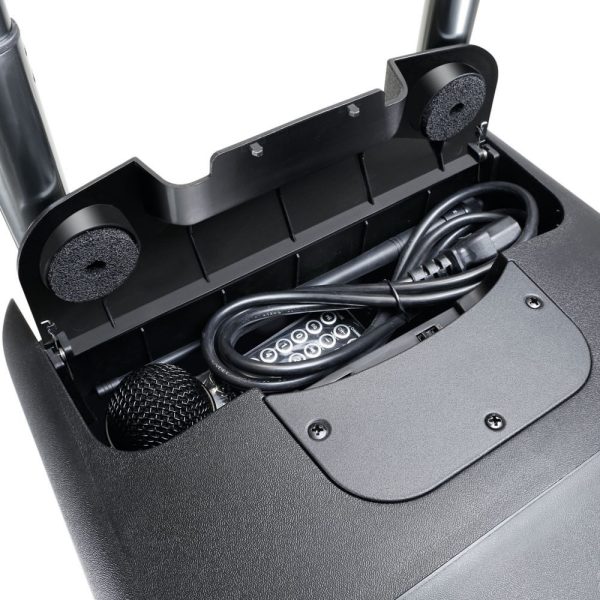

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

Product type Battery-powered PA speaker
Low/mid driver dimensions 10 ”
Woofer size 254 mm
Woofer magnet Ferrite
Woofer brand Custom-made
HF driver dimensions 1 ”
HF driver size 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
Amplifier Class D
RMS 120 W
Peak power 480 W
Frequency response 55 – 18000 Hz
SPL (1W/1m) 96 dB
Max. SPL 115 dB
Protection circuits over-current, overload protection, short circuit
Controls AUX / MP3 switch, CD / Tape IN Level, Echo, high, low, Mic 1 Level, Mic 2 Level, Total volume
Indicators Charge/battery status, Power
Media player
Supported media Bluetooth, SD Card, USB stick
Supported formats MP3 file, WAV-CD, WMA file
Media player controls equalizer, Mode (Menu / Bluetooth /SD / USB), Next Track, Play / Pause, Previous Track, Repeat, Stop
Media player display elements Lighted multifunctional LC display
Line inputs 1
Line input connectors 2 x RCA, 2 x XLR, 3.5 mm jack, 6.3 mm jack
Mic inputs 2
Mic inputs 2 x XLR, 6.3 mm jack
Wireless Unit
Transmission frequency range 655 – 679 MHz
Modulation Type FM
Channels 16
Frequency Response Wireless Unit 50 – 17000 Hz
Controllers Wireless Unit ASC, Mute Level (Squelch), Power / Volume, Value Down, Value Up
Indicators Wireless Unit AF (LED), LED Display, RF (LED)
Connections Wireless Unit nTNC for receiver antenna
RF Transmitter Power Output 10 mW
Handheld Microphone Weight 0.285 kg
Handheld Microphone Material Aluminium
Operating voltage Switching power supply
Operating voltage 100 V – 120 V / 60 Hz, 220 V – 240 V AC / 50 Hz
Rechargeable batteries 12 V / 5 Ah
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Width 415 mm
Height 525 mm
Depth 328 mm
Weight 16,5 kg
Other features extendable handle, IR Remote for Media Player, Stand mount 36 mm, Transport casters, transport handle
