Product Description

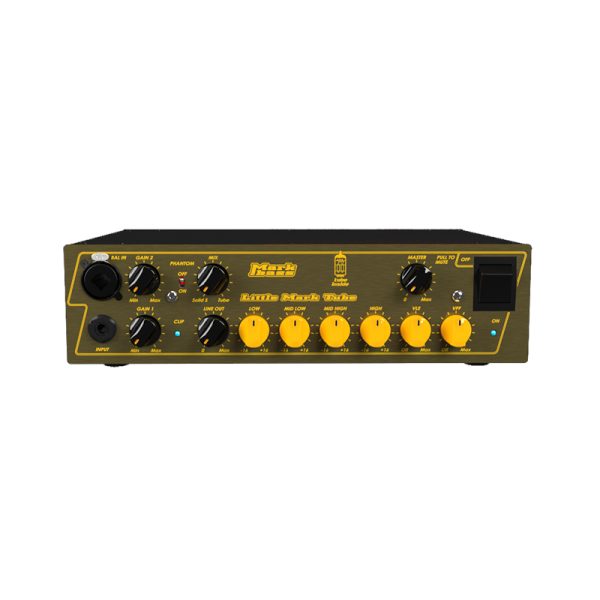

MarkBass Little Mark Tube
The Little Mark Tube gives the warmth and richness of a tube preamp, or the clean attack of a solid state preamp… or a mix of both! On the front panel there are also two inputs with separate gain controls: one 1/4” jack, and one combo jack that accepts either a XLR or 1/4” cable. Additional features include switchable 48V phantom power for the XLR input, solid-state/tube mix control, four bands of equalization, VLE and VPF filters, line out level control, pre-post EQ switch for the XLR out (on rear panel), and mute control (push-pull on the master knob).
TECHNICAL SPECS
INPUTS
- INPUT 1: impedance 500 Kohm, max. voltage 15 Vpp
- INPUT 2: (Balanced XLR/1/4″ combo)
- BALANCED: impedance 500 Kohm, max. voltage 15 Vpp, phantom power 48V
- EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp
CONTROLS
- GAIN 1: -60 dB to 23 dB range
- GAIN 2: -60 dB to 23 dB range
- MIX: mixes tube and solid state gain
- MASTER VOLUME
- LINE OUT LEVEL
- GROUND LIFT (switch on rear panel)
- PRE/POST EQ (switch on rear panel)
- MUTE (push/pull on master knob)
EQUALIZATION
- LOW: center frequency 40 Hz; level: ±16 dB
- LOW MID: center frequency 360 Hz, level: ±16 dB
- HIGH MID: center frequency 800 Hz, level: ±16 dB
- HIGH: center frequency 10 kHz, level: ±16 dB
- VPF (Variable Pre-shape Filter) center frequency 380 Hz
- VLE (Vintage Loudspeaker Emulator) frequency range 250 Hz-20 kHz
OUTPUTS
- LINE OUT: balanced XLR, max. voltage 20 Vpp
- EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
- TUNER OUT: unbalanced, max. voltage 2 Vpp
- SPEAKER OUT: speakon/1/4″ combo, 1/4″
OTHER
- WEIGHT: 5.07 lbs / 2.3 Kg
- WIDTH: 10.87 in. / 27.6 cm
- DEPTH: 9.84 in. / 2.5 cm
- HEIGHT: 3.27 in. / 8.3 cm
- OUTPUT POWER: 500W RMS @ 4 ohms / 300W RMS @ 8 ohms
- POWER REQUIREMENT: 100/120V; 230V; 240V – 50/60Hz (Voltage is factory preset according to region of sale)
