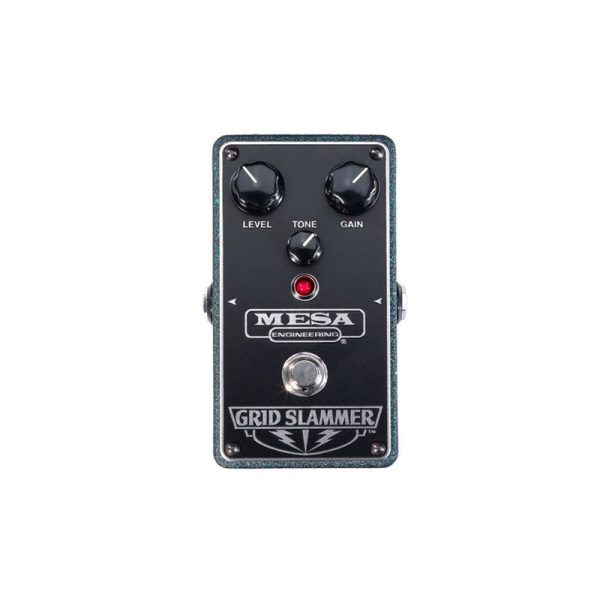

Mesa Boogie Grid Slammer

The GRID SLAMMER™ overdrive pedal produces a variable boost in gain over a wide range with a classic, guitar-centric midrange bump that enhances many different playing styles. It’s a true overdrive “specialist” that covers an amazing array of what many top players consider the most expressive and musical ranges of overdrive. From sweet, subtle breakup to a harmonically smoldering overdrive that can both sting and sing, the GRID SLAMMER sets a new bar in legendary overdrive!

PRODUCT FEATURES:

• Designed and Handcrafted in Petaluma, California, USA
• True Bypass On/Off Switching – Bypasses all circuitry when off to ensure no tonal loss
• Gain Control allows you to dial in the perfect amount of vintage breakup or classic overdrive
• Master Level Control provides a variable range of signal boost up to 20dB
• Tone Control balances the amount of high frequencies
• On/Off Status LED
• 9V Battery Powered or Externally Powered (optional) via External Power Jack Input
• Input & Output Jacks (Nominal Input -20dB)

SPECIFICATIONS:

• Dimensions (W/D/H): 2.87″ x 4.77″ x 2.28″ (73mm x 122mm x 58mm)
• Weight: 0.731 lbs. (332g) with battery, 0.631 lbs. (287g) without battery
• True Bypass Switching
• Battery Type: 9VDC (one)
• Power Consumption (Current Draw): 9VDC/15mA
• External Power Supply (Not Included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
• Input Impedance: 1M Ohm (500k Ohm minimum)
• Output Impedance: 10k Ohm
