Mooer EchoVerb

Product Description

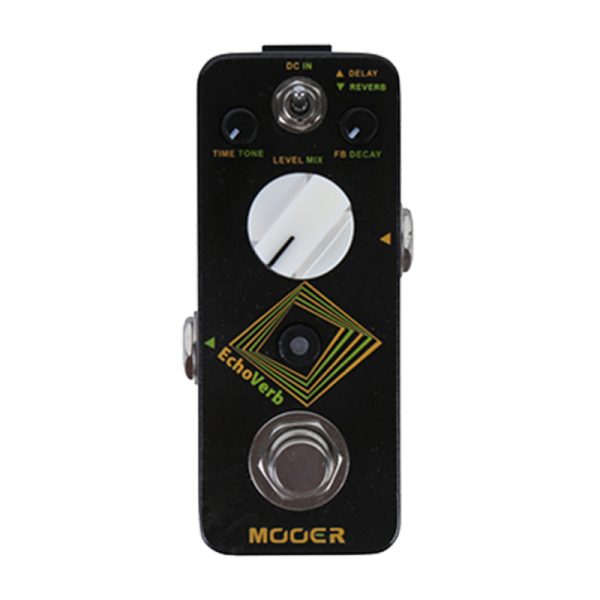

Mooer EchoVerb

Echo Verb combines a new high quality reverb and digital delay into one small pedal. Either effect can be used alone or simultaneously for. The versatile controls allow the user to easily dial in Echo Verb to be used in a myriad of different ways, be it subtle ambient enhancement or huge wet special effects. The delay comes complete with Tap Tempo which can be operated via the footswitch or with the small LED button in the centre of the pedal. Perfect companion for a small pedal rig.

Controls

Controls switch:Depicts which effect the controls are adjusting. Switch up to adjust Delay(Tape Echo) parameters switch down to adjust reverb  parameters.

LEVEL/MIX control:Adjusts volume of delay and wet/dry mix of reverb.

TIME/TONE: Adjusts Delay time(45ms-1600ms) and Reverb tonality.

FB/DECAY:Adjusts Delay feedbackand Reverb decay（Room-Mountains）.

Tap Tempo Functionality:

1、Footswitch Mode:Depressing the footswitch for more than 1 seconds will engage Tap Tempo functionality and the LED will flash. Tap the footswitch two or more times to synchronize the delay to your desired tempo. The pedal will revert back to normal operation after 5 seconds.

2、LED Mode: Tap the LED 2 or more times to synchronize the delay to your desired tempo.

Specification

Input:1/4” mono audio jack.(Impedance: 470k Ohms)
Output:1/4” mono audio jack(mpedance: 100 Ohms)
Power requirements:AC adapter 9V DC ,center negative.
Highly recommend to use Mooer Micro Power.
Current Draw:160mA
Dimensions:93.5mm(D) x 42mm(W) x 52mm(H)
Weight:146g
