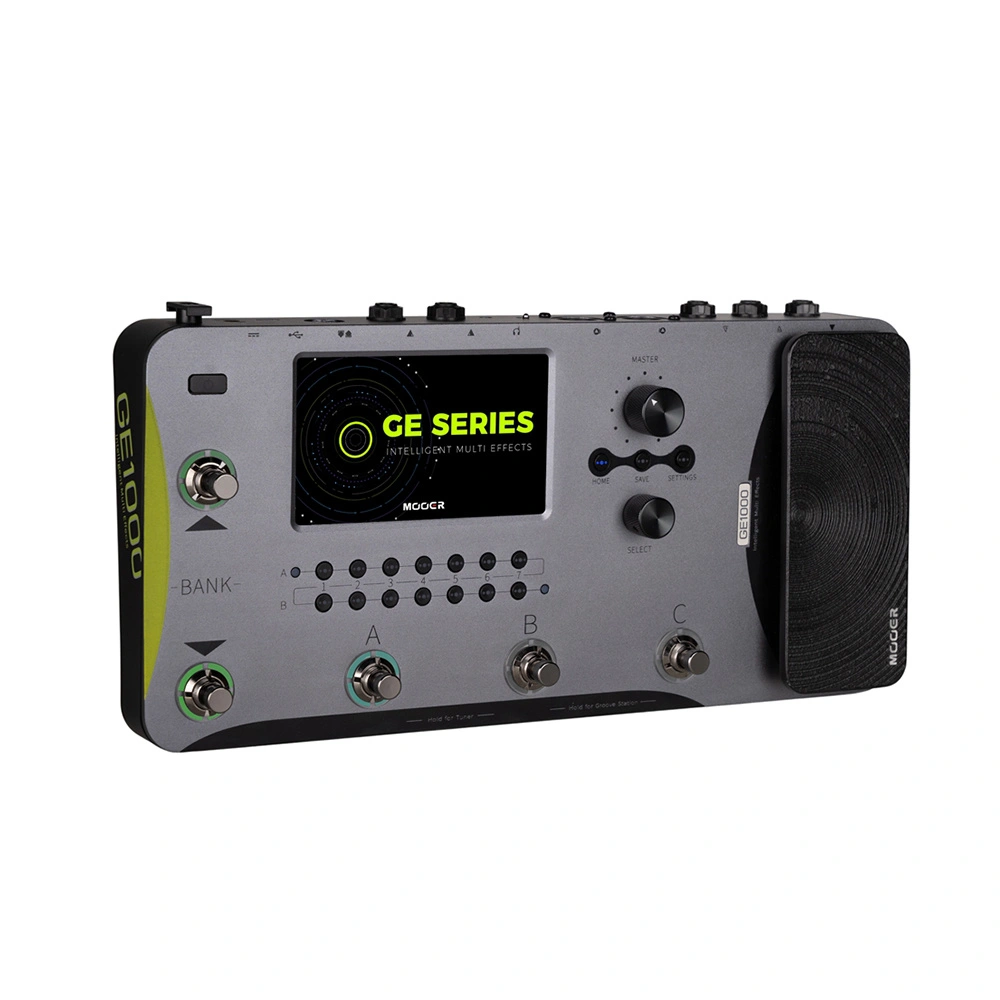

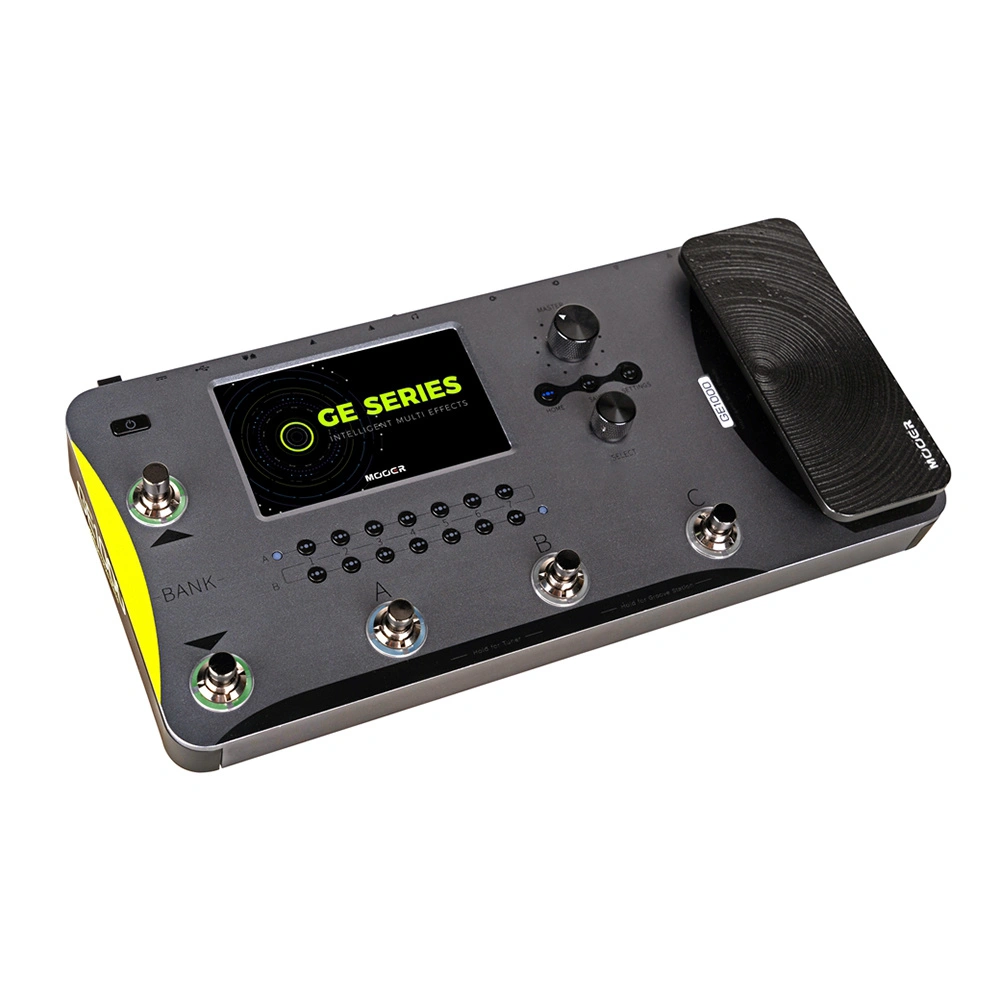

Mooer GE1000 Multi-Effects Pedal

Deskripsi Produk

The GE1000Li Multi-Effects Pedal

The GE1000, built with a futuristic and sleek “Walking Star” design, builds upon past GE products, offering an even larger range of guitar processing effects, preamps, amp simulators, and features than previous entries.

The GE1000 comes preloaded with an impressive bank of guitar effects and amp simulations, but this is augmented further through MNRS GE Cloud support. MOOER’s MNRS files consist of IR samples from real amplifiers, facilitating authentic feeling tones that can be downloaded, uploaded, and shared via MOOER’s ‘GE Cloud’ app for free. The GE1000 also supports third-party IR files of up to 2048 sample points, enabling further expansion of the pedal’s portfolio of amp simulators.

FEATURES

• New member of MOOER GE series, using the new Walking Star design language
• Choice between a traditional version (GE1000) and a version with integrated 7.4 V / 4750 mAh Li-Ion battery (GE1000 Li) for use without a power cable
• Large 5″ high-quality touch screen with intuitive UI, delivering brand-new multi-effect experience
• 85 storage banks with 3 presets each, providing a total of 255 storage spaces for presets
• Innovative AI equalization master can provide inspiration for tone adjustment according to the style of music
• Extensive I/O options provide flexibility for studio, stage and practice applications
• Stereo outputs and switchable parallel / serial stereo FX loop to add external pedals to the chain of effects
• Quick-access physical effect block buttons typical for the GE family
• On-board EXP1 pedal can be configured as volume control or expression pedal
• Supports wireless footswitch of the MOOER F4 series for extended control options
• Including Groove Station mode with Drum Machine and Looper that can be synchronized; the perfect tool for creativity and practice
• Precise built-in instrument tuner
• Tap tempo control for tempo-based effects and Drum Machine
• Adjustable Global EQ settings plus adjustable input and output levels for easy integration in any setup and great results with all different kinds of instruments and venue configurations
• Supports audio playback from mobile devices via Bluetooth
• Programmable MIDI ports for MIDI IN or MIDI OUT to allow control from external devices or to control other devices
• Type-C port:
  – Professional low-latency ASIO USB audio interface (Type-C) supports up to 192 kHz sample
  rate, providing a one-stop solution for professional musicians
  – USB MIDI function
  – Firmware updates via PC softwa

SPECIFICATIONS

Effects
Number of module types 11
Total number of effect models more than 340
Preset storage slots 255
Impulse Response
Supported formats WAV
Sampling rate 44.1 kHz
Sampling accuracy 24 bit
Number of sample points Up to 2048 sampling points
Inputs
INPUT jack
Interface type 1 x 1/4” unbalanced stereo input connector
Input impedance 1 MOhm
Maximum input level 10 dBu
RETURN jack
Interface type 1 x 1/4” unbalanced mono input connector
Input impedance 1 MOhm
Maximum input level 10 dBu
Audio Analog-to-Digital Converter
Sampling rate 44.1 kHz
Sampling accuracy 24 bit
Dynamic range 114 dB
Frequency response 20 Hz – 20 kHz, +0 / -1 dB

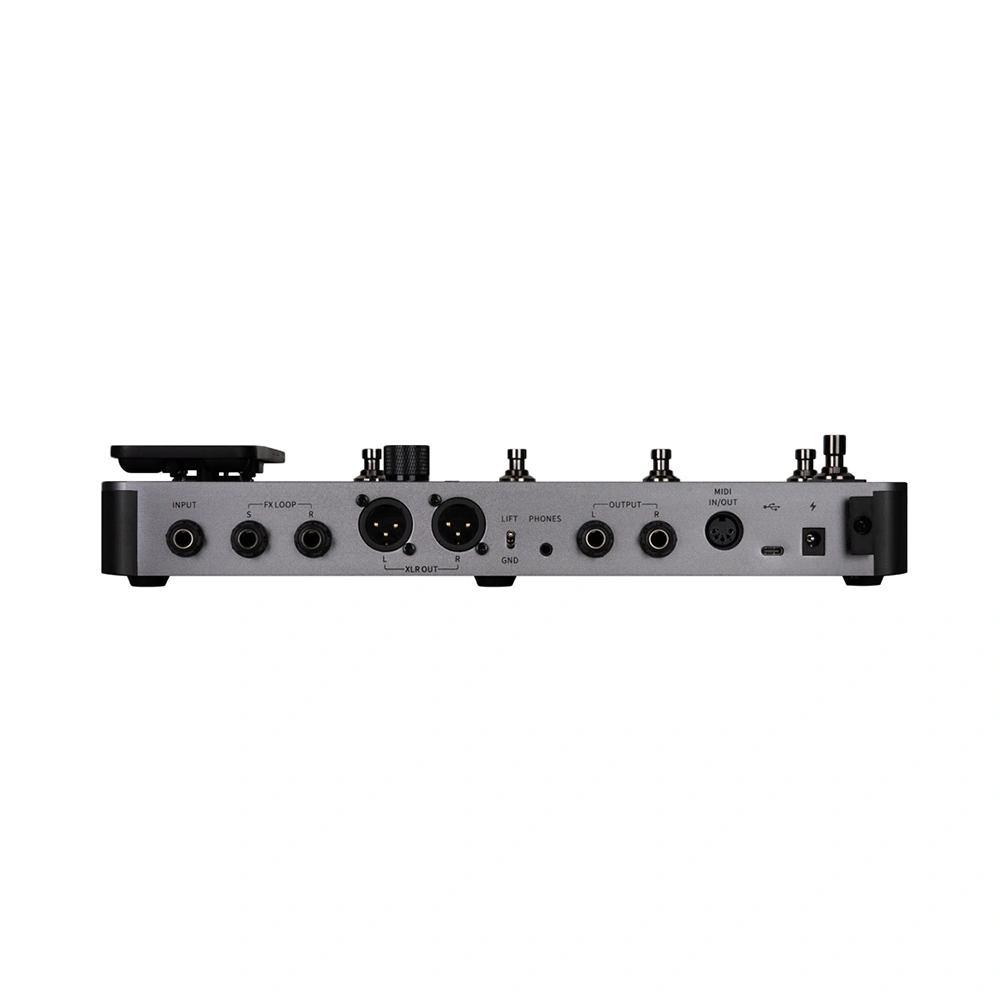

Outputs

OUTPUT jack
Interface type Two 1/4” unbalanced mono output jacks
Output impedance 600 Ohm
Maximum output level 18 dBu
XLR connector
Interface type 2 x balanced signal XLR output jacks
Output Impedance 600 Ohm
Maximum output level 18 dBu
SEND jack
Interface type 1 x 1/4” unbalanced stereo output connector
Output Impedance 510 Ohm
Maximum output level 18 dBu
PHONES jack
Interface type 1 x 1/8” unbalanced stereo output connector
Output impedance 6 Ohm
Maximum output level 18 dBu
Audio DAC
Dynamic range 115 dB
Frequency response 20 Hz – 20 kHz, +0 / -1 dB
Signal-to-noise ratio 115 dB
Misc
MIDI interface
MIDI IN or MIDI OUT 1 x 5-pin female connector
USB port
Interface type TYPE-C connector
USB Audio USB2.0, 2 in 2 out, 44.1 – 192 kHz, 24bit
General
Power Supply GE1000: DC 9 V, 1 A, negative center
GE1000 Li: DC 9 V, 3 A, negative center
Battery (GE1000 Li) Li-ion, rechargeable, 4750 mAh, 35.15 Wh, 7.4 V
Battery life (GE1000 Li) Approx. 6 hours (at 50% screen brightness, 25°C)
Charging time (GE1000 Li) Approx. 2.5 hours (using original adapter, device turned off)
Dimensions 337 mm × 170 mm × 57 mm (LxWxH)
Weight GE1000: 1.9 kg / GE1000 Li: 2.0 kg

WHAT IN THE BOX

Power adapter, USB cable, Quick guide
