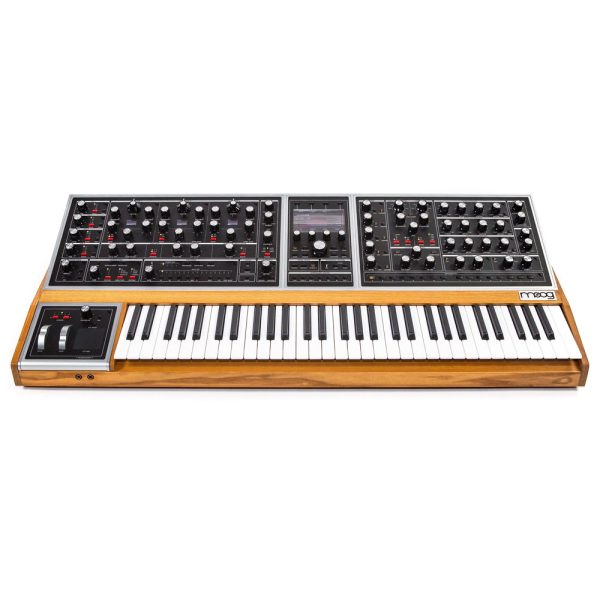

Moog One 8-voice Analog Synthesizer

Moog One is the ultimate Moog synthesizer – a tri-timbral, polyphonic, analog dream-synth designed to inspire imagination, stimulate creativity, and unlock portals to vast new realms of sonic potential. The first polyphonic analog synthesizer from Moog in more than three decades, Moog One is the culmination of years of research and has been developed to exceed principal expectations of a polyphonic Moog instrument.

Available in 8-voice and 16-voice configurations, Moog One’s polyphonic sound engine is built on the most powerful synthesizer architecture ever employed by a Moog instrument. Per voice, Moog One offers 3 newly-designed analog VCOs, 2 independent analog filters, a dual source analog noise generator, analog mixer with external audio input, 4 LFOs, and 3 envelopes. To deliver an infinitely inspiring performance experience, each of the three timbres can be easily split or layered across Moog One’s expressive 61-note keyboard, each with its own sequencer, arpeggiator, and onboard effects library–including a suite of professional reverbs from Eventide®.

Secured in a hand-finished Ash cabinet and aluminum enclosure, Moog One’s front panel is equipped with 73 knobs and 144 buttons, inviting physical connection with every sound shaping and performance control. Extended functionality is easily accessed via a per-module “More” button that brings additional parameters into focus using the Moog One center-panel LCD to ensure the most transparent and expedient sound creation experience possible.

Moog One is an unprecedented conduit for the expression of your own creative voice. Sculpt, shape, and transform your own sound with nearly infinite possibilities.

• TRIANGLE CORE OSCILLATORS

  Each Moog One voice employs three newly developed triangle core analog VCOs. The output of each oscillator is a user-defined mix of the selectable triangle / sawtooth wave, plus a variable-width pulse wave. Expanding beyond traditional oscillator designs, the rise/fall time of the triangle wave and the reset phase of the sawtooth wave can be shaped and modulated to create to a rich palette of classic analog tones. Blending the tri/saw and pulse waves together opens new dimensions of harmonic freedom, creating complex waveforms not typically found in analog synthesizers. The Moog One oscillator section is also equipped with hard sync, analog ring modulation, and FM for boundless analog sound generation.

• DUAL SOURCE NOISE GENERATOR

  Each Moog One voice includes an advanced dual-source analog noise generator that allows different colors of noise to be selected and mixed, while and dynamically articulated utilizing the dedicated noise envelope generator. This unique module is a powerful tool for adding percussive attacks, breath, or full-body impact to a sound.

• MIXER

  Moog One offers a flexible analog mixer, providing volume controls and filter routing selections for each oscillator, noise generator, ring modulator, and external audio input — sound sources can be shaped by different filters independently, or at the same time.

• • SYNTHESIZER TYPE

    Polyphonic, Tri-timbral Analog Synthesizer

  • SOUND ENGINE

    Analog (Digital Effects can be bypassed to maintain analog signal path)

  • POLYPHONY

    8 voices

  • KEYBED

    61 Full-size keys with Velocity and Aftertouch (Fatar TP-8S)

  • CONTROLLERS

    Pitch Wheel, Modulation Wheel, X/Y Pad (with pressure-sensing and hold), Sustain Pedal input, EXP 1 pedal input, EXP 2 pedal input – all pedal functions are assignable

  • PANEL CONTROLS

    73 knobs and 144 buttons; LCD screen

Close

• OSCILLATORS (x3)

  Selectable Sawtooth wave with variable reset time or Triangle wave with variable rise and fall times, variable-width Pulse wave, Octave (32’, 16’, 8’, 4’, 2’), Frequency ( /- 7 semitones), Beat Frequency ( /- 7Hz), Wave Angle (Triangle and Saw), Pulse Width, Mix (blends the selected Triangle or Saw wave with the Pulse wave), FM routing and amount, and Hard Sync

• RING MODULATOR

  Selectable routing (1-2 or 2-3)

• DUAL SOURCE NOISE GENERATOR

  Selectable sources (Red White, Red Purple, and White Purple) with Color Mix and dedicated ARS envelope

• MIXER

  Independent levels and filter routing for OSC 1, OSC 2, OSC 3, RING MOD, NOISE, and EXT in.

• FILTERS

  State-Variable Filter; Ladder Filter (Mixable, Parallel or Series operation)

• STATE VARIABLE

  Two 12dB per octave filters operating as one filter, configurable in NOTCH, BP, LP, and HP – with 12dB or 24dB slopes; Cutoff, Resonance, etc.

• LADDER FILTER

  Moog Ladder Filter with HP or LP options, and selectable filter slopes (6db, 12db, 18dB, or 24dB); Cutoff, Resonance, etc.

• ENVELOPES (x3)

  Delay, Attack, Hold, Decay, Sustain, and Release; variable curves per stage, plus multi-triggering, looping, latching, and sync

• LFOS (x4)

  Dual-waveform categories with variable shapes (Triangle to Sine, variable-width Pulse, Saw to Ramp, S&H to Noise), assignable and variable transitions; fade-in/fade-out times, repeat count, phase start, etc.

• GLIDE

  Selectable glide type (LCR, LCT, EXP), gated glide, legato glide, glissando

• ARPEGGIATOR

  Per SYNTH with octave range, pattern, direction, pendulum features, gate time, sync, etc.

• SEQUENCER

  64-Step per-SYNTH sequencer with step-editing and modulation capabilities

• SYNTH EFFECTS

  Dedicated in-line effect for SYNTH 1, SYNTH 2, and SYNTH 3 (When disengaged, the signal path is 100% analog)

• MASTER EFFECTS

  Dual mono sends with stereo return, or single stereo send with stereo return. (Accessible by all three SYNTHS – Eventide® Reverbs are available on the Master Bus only)

• BROWSER

  Stores tens of thousands of PRESETS and TIMBRES with definable Categories, Tags and Labels to aid search results. TIMBRES can be loaded to and played by any SYNTH

• PERFORMANCE SETS

  Create, save, and manage up to 128 Performance Sets offering single-button access to up to 64 PRESETS

• SETTINGS

  Access to pages for managing Libraries, Tuning features, plus Utilities such as updates, configuring ins and outs, etc.

• MOD MATRIX

  Provides the ability to map modulation sources to destinations at will, using either controllers or addressable transforms to articulate the modulation signal

• VOICE ALLOCATION

  Mono or Poly voice count per SYNTH, unison/mono detune (48 oscillator max.), Chord Memory, plus voice stealing/sharing options

• SNAPSHOT, COMPARE

  Built-in tools for saving and comparing during programming

• VCA SECTION

  VCA level per SYNTH, Pan per SYNTH

• OUTPUT SECTION

  Master Volume and Headphones volume controls

• AUDIO OUTPUTS

  Main L, Main R (1/4″ TRS; TS compatible)

• SUB OUTPUTS

  Sub 1, Sub 2 (1/4″ TRS; TS compatible)

• AUDIO INSERTS

  Insert 1, Insert 2, Insert 3, Insert 4 (1/4″ TRS Send / Returns- Can be used as mono outs)

• EXTERNAL MIC/LINE INPUT

  XLR 1/4″ TRS combo jack with trim knob

• EXTERNAL LINE INPUT

  1/4″ TRS (TS compatible)

• HEADPHONES

  2x Stereo 1/4″ jacks (located on the front edge of the Left Hand Controller)

• CONTROL VOLTAGE INPUTS

  CV IN 1, CV IN 2 (1/4″ TS)

• CONTROL VOLTAGE OUTPUTS

  CV OUT 1, CV OUT 2, CV OUT 3, CV OUT 4 (1/4″ TS)

• PEDAL INPUTS

  Sustain, EXP 1, EXP 2, (1/4″ TRS; configurable through the Modulation Matrix, or as CV Inputs.)

• WEIGHT

  45 lbs. / 20.4 kg (approximate)

• DIMENSIONS (W x D x H)

  42 x 20 x 7 (inches); 107 x 51 x 18 (cm)
