Deskripsi Produk

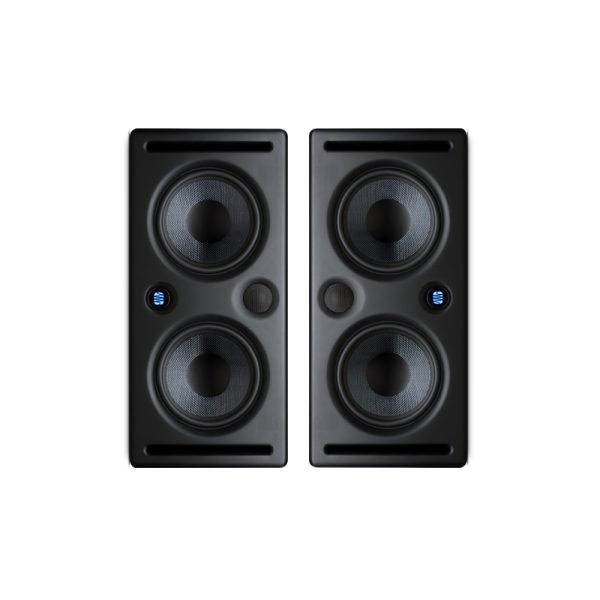

PreSonus Eris E66
Ultra-wide, detailed stereo soundstage.
The Eris® E66 delivers an expanded and highly accurate frequency response and the widest stereo field available in its class. Its nested Midwoofer-Tweeter-Midwoofer (MTM, also known as “D’Appolito”) configuration offers improved off-axis response and spatial resolution. The result is a more consistent listening experience, smoother frequency response, and an ultra-wide, detailed stereo soundstage.
VIDEO
Components and construction
Dual 6.5-inch, custom-woven Kevlar® LF/midrange drivers produce dynamic, size-defying bass output
1.25-inch, silk-dome HF driver ensures smooth high-frequency performance that is never fatiguing to the ears
Balanced XLR, balanced ¼-inch TRS, and unbalanced RCA inputs provide flexibility for seamless integration into any environment
User controls
Acoustic tuning controls help to compensate for room anomalies, providing a consistent frequency response customized for your mix environment
Continuously variable HF and MF controls (-6 to 6 dB)
Low-cut filter (flat, 80 Hz, 100 Hz)
Acoustic Space settings (Flat, -2 dB, -4 dB) compensates for room placement
Power and safety
90W/140W Class A/B bi-amplification for an open, clear sound
RF interference, output-current limiting, over-temperature, and subsonic filter protection
Amplifier “soft start” feature eliminates popping on power-up
Internal power supply with IEC connector
Technical Specifications
Inputs
1- Balanced XLR
1- Balanced ¼” TRS
1- Unbalanced RCA
Performance
Frequency Response
45 Hz – 22 kHz
Crossover Frequency
2.4 kHz
LF Amplifier Power
80W
HF Amplifier Power
65W
Peak SPL (@ 1 meter)
106 dB
LF Driver
Dual 6.5” Kevlar®
HF Driver
1.25” silk dome
Input Impedance
10 kΩ
User Controls
Volume Range
A-type taper
MF Control
Variable (-6 to 6 dB)
HF Control
Variable (-6 to 6 dB)
Low Cut
Flat, 80 Hz, 100 Hz
Acoustic Space
Flat, -2 dB, -4 dB
Protection
RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse
Power
100-120V ⁓50/60 Hz
220-240V ⁓50/60 Hz
Cabinet
Vinyl-laminated, medium-density fiberboard
Physical
Width
18.1” (460 mm)
Depth
8.5” (215 mm)
Height
9.8” (250 mm)
Weight
23.4 lbs (10.6 kg)
