PreSonus Firebox

Product Description

PreSonus Firebox

The FireBox is the most powerful 24-bit/96k FireWire recording interface that fits in the palm of your hand. The FireBox is a complete 24-Bit/96k personal recording studio combining two high quality PreSonus microphone/instrument preamplifiers and 24-Bit/96k sample rate.

The FireBox is the most professional-quality mobile interface in its class delivering:

• Higher-quality analog to digital converters (Dynamic Range 110 dB)
• Class-A microphone preamplifiers
• Ultra wide frequency response (10 – 50 kHz)
• Road-ready rugged build quality – metal chassis

Hardware

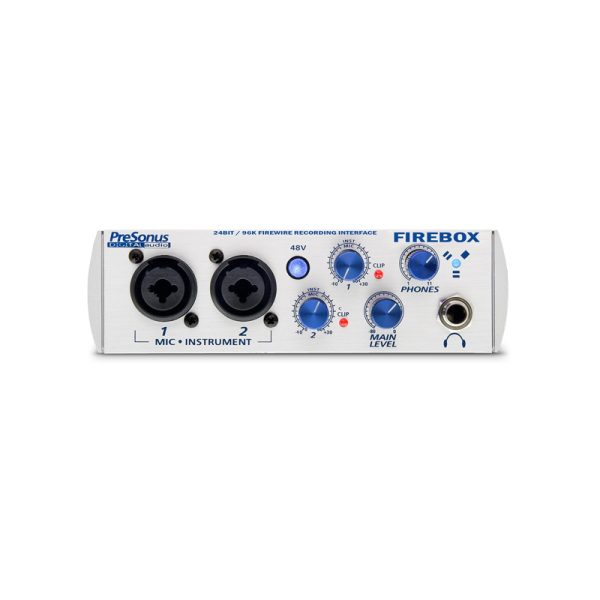

The FireBox has the highest record/playback track count of its size with the ability to record six inputs and playback through ten outputs simultaneously all at pro-quality 24-bit/96kHz. Two ultra-low noise high-headroom microphone/instrument preamplifiers with 48V phantom power are on the front panel for quickly and easily connecting your favorite microphones and instruments. The FireBox also includes a high quality stereo headphone output with volume adjustment on the front panel. The headphone output has its own two-channel driver stream which can be used as a separate stereo bus or two-channel output giving you the ability to send a “cue” mix to the headphone output and a main mix to the main output. Two additional balanced TRS line inputs are located on the rear of the FireBox along with six balanced TRS line outputs. Two channels of S/PDIF input/output and MIDI input/output are also included via DB9 breakout cable. A software router/mixer is also included for further flexibility and power. The 1/3U-wide metal chassis of the FireBox is designed to fit the MAXRACK rack-mounting system from PreSonus and can be racked with the TubePRE, COMP16, EQ3B and HP4 for a neat and compact computer recording system.

The FireBox works with both four and six-pin FireWire (IEEE 1394) connectors and can be powered by either 6-pin FireWire bus power, or powered by an external power transformer.

DSP Mixer Included

The FireBox features a Zero-Latency DSP mixer that allows you to mix all six live inputs with a software output stream, then route that mix to any one of its outputs, as well as assign either that mix or a software output stream to its headphone amplifier. This feature eliminates monitoring through the computer and makes it easy to customize a mix for the artist. It also allows CUEING for DJ’s and live performance where the headphone output can monitor a completely different signal than the MAIN outputs.
