Roland TM-1 Drum Trigger Module

Product Description

HYBRID DRUMMING BEGINS HERE

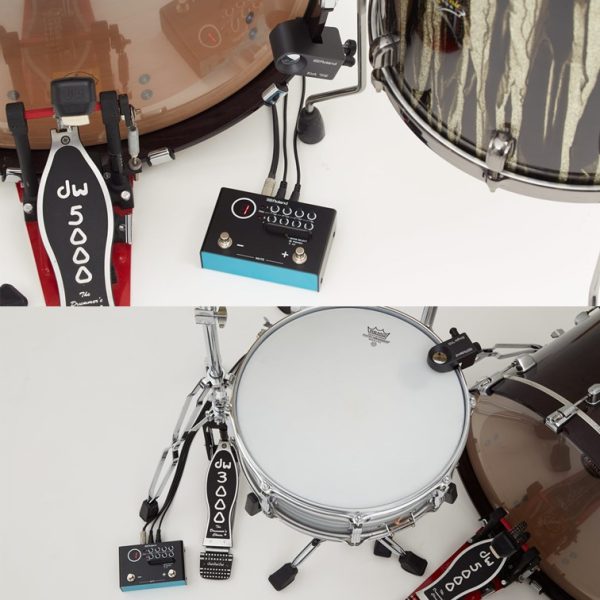

No two drummers are the same, and every player has their own distinctive style. Getting a sound that you’re happy with, not to mention having the right sound for the gig, is vital. But it can be expensive and time consuming trying to find out what works. Enter the TM-1—a unique trigger module that makes it easy to add more sounds to your acoustic drum kit. And those sounds can be anything you like, from the TM-1’s onboard kick, snare, tom, cymbal, and percussion samples to your own samples and loops. Just connect any compatible Roland trigger pad to the TM-1 and directly play the sounds you need, or mount an RT-series trigger to one of your acoustic drums and play with your preferred sample layered on top in perfect sync, with no lag whatsoever. Getting your own custom sounds into the TM-1 is a breeze, thanks to the free editor app for Mac/Windows and iOS/Android.* Simply connect the TM-1 to your device, open the app, import samples from your library, and tweak the settings as needed. When it comes to performing on stage, the battery- or mains-powered TM-1 can be easily controlled with your foot via built-in switches. It’s even possible to mute the hybrid sound with a foot press, letting you go all-acoustic in the verses before bringing in some extra hybrid power for the chorus. Every working drummer can benefit from a hybrid setup these days, and the TM-1 is the easiest and most affordable place to start.

Features

• The easiest way to get started with the power of hybrid drums
• Simple and intuitive to use, with direct controls for all trigger functions
• Small size, battery operation, and sturdy floor-based design integrates easily with your regular drum set
• Two built-in footswitches for triggering sounds, changing kits, and muting the module
• Suitable for any music style, from rock and metal to electronic music and beyond
• 15 ready-to-play onboard kits and nearly unlimited sound customization via a convenient editor app
• Free TM-1 Editor (Mac/Windows, iOS/Android) provides access to over 150 additional sounds, plus user sample import and much more
• Compatible with Roland RT-series acoustic drum triggers and a wide variety of Roland trigger pads
• Connect up to two pads or triggers (two single-trigger devices or one dual-trigger device)
• Also works as a trigger-to-MIDI convertor when connected to a computer
• USB for editor communication and trigger-to-MIDI conversion

Specifications

Kits

15

Preloaded Sounds

30

User Sample

Number of User Sample: 30
Sound Length: Approx. 6 second/Sample

Data Format

Mac OSX:
WAV, AIFF, MP3, AAC, Apple Lossless

Windows:
WAV (44.1 kHz, 16/24 bits)

iOS:
WAV, AIFF, MP3, AAC, Apple Lossless

Android:
WAV (44.1 kHz, 16 bits), MP3
*The Application ‘TM-1 Editor’ is required.

Display

7 segments, 1 character (LED)

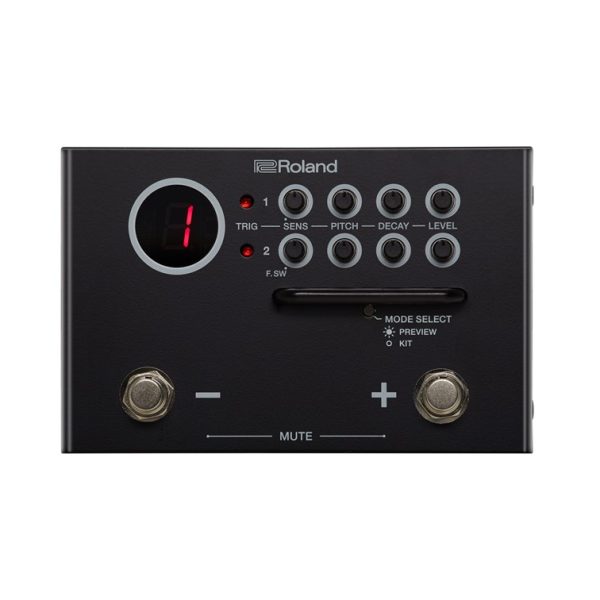

Controls

[SENS] knob (TRIG1, TRIG2)
[PITCH] knob (TRIG1, TRIG2)
[DECAY] knob (TRIG1, TRIG2)
[LEVEL] knob (TRIG1, TRIG2)
[MODE SELECT] button
[MUTE] switch
[KIT SHIFT] switch
[POWER] switch

Indicator

Trigger Indicator (TRIG1, TRIG2)

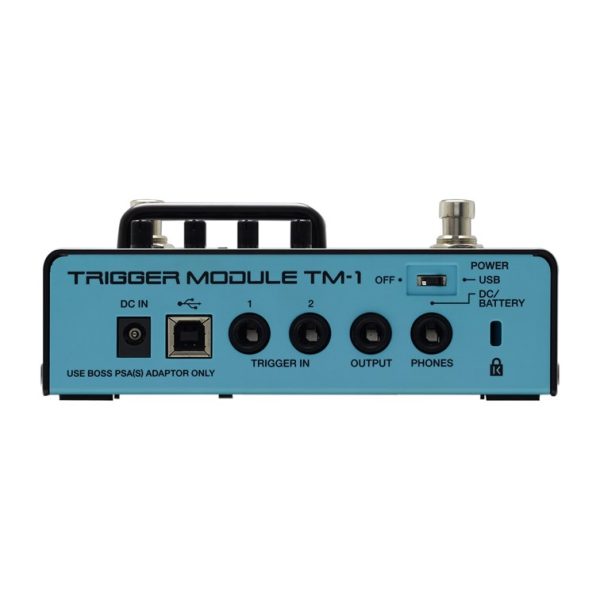

Connectors

TRIGGER IN jack : 1/4-inch phone type, mono
OUTPUT jack : Stereo 1/4-inch phone type
*When setting the Output Setting to the “MIX”, The mixed sound of trigger 1 and 2 is output in mono.
*When setting the Output Setting to the “INDIVIDUAL”, Each trigger is output separately to left and right (TRIG1: L-Side, TRIG2: R-Side).
PHONES jack: Stereo 1/4-inch phone type
USB port: USB type B
DC IN jack

USB

MIDI

Power Supply

Alkaline battery (9 V, 6LR61)
AC adaptor (DC 9 V, sold separately)
Supplied from the computer via USB port

Current Draw

100 mA (DC IN)
250 mA (USB)

Expected battery life under continuous use : Approx. 3 hours
*It depends on the batteries’ specification, capacity, and conditions of use.

Accessories

Owner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (9 V, 6LR61)
USB type B Cable
