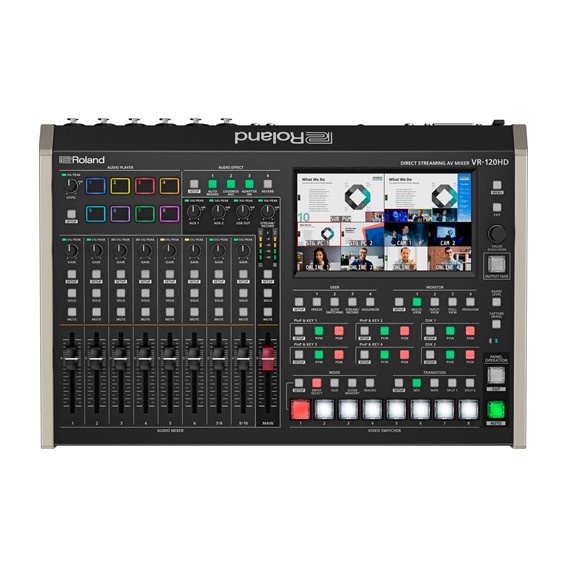

Roland?VR-120HD Direct Streaming Live Audio Visual Mixer

Product Description

One Operator, Multiple Audiences

———-

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.

———-

FEATURES

• Portable hybrid event audio/video mixer with direct streaming encoders
• Powerful live production automation with sequencing, macros, and scene memories
• Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Six 3G SDI inputs with frame rate converters
• Six 1080p HDMI inputs with frame rate converters and real-time scalers
• Support for cinema and broadcast frame rates
• Eight-layer video effects engine
• Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output
• Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
• 42-channel digital audio mixer with advanced effects and processing
• 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
• Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
• Audio Player function with eight trigger pads and onboard storage for 16 audio files
• PTZ control for 12 cameras with support for multiple brands and mixed protocols
• Large seven-inch touch screen with graphical menu
• Extensive device control with Bluetooth, USB, RS-232, and LAN
• Remote control software available for iPad, macOS, and Windows*
• Wireless and wired camera tally support

———-

SPECIFICATIONS

VIDEO

Video Processing

4:2:2 (Y/Pb/Pr), 8-bit

Number of Video Channels

12 channels

Video Input Formats

HDMI IN 1–6

480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1

576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2

1080/23.98p, 1080/24p

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)

FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)

* The refresh rate is the maximum value of each resolution.

* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.

* 1920 x 1200/60 Hz: Reduced blanking

* The input interlaced video signal is converted to progressive video signal by internal processing.

* The input refresh rates of SVGA (800 x 600)–SXGA+ (1400 x 1050) are 75 Hz when the unit’s frame rate setting is 50 Hz.

*1 Frame Rate = 59.94 Hz, 60 Hz

*2 Frame Rate = 50 Hz

SDI IN 1–6

720/59.94p *1, *3

720/50p *1, *4

1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3

1080/50i, 1080/50p, 1080/25p *2, *4

1080/23.98p, 1080/24p *2

* The input interlaced video signal is converted to progressive video signal by internal processing.

*1 Output Format = 720p

*2 Output Format = 1080i or 1080p

*3 Frame Rate = 59.94 Hz, 60 Hz

*4 Frame Rate = 50 Hz

Video Output Formats

HDMI OUT 1–3, SDI OUT 1–3:

720/59.94p *1, *4, 720/60p *1, *5, 720/50p *1, *8, 1080/59.94i *2, *4, 1080/60i *2, *5, 1080/50i *2, *8, 1080/59.94p *3, *4, 1080/60p *3, *5, 1080/29.97p *3, *6, 1080/30p *3, *7, 1080/50p *3, *8, 1080/25p *3, *9, 1080/23.98p *3, *10, 1080/24p *3, *11

*1 Output Format = 720p

*2 Output Format = 1080i

*3 Output Format = 1080p

*4 Frame Rate = 59.94 Hz

*5 Frame Rate = 60 Hz

*6 Frame Rate = 29.97 Hz

*7 Frame Rate = 30 Hz

*8 Frame Rate = 50 Hz

*9 Frame Rate = 25 Hz

*10 Frame Rate = 23.98 Hz

*11 Frame Rate = 24 Hz

USB STREAM:

1080/59.94p, 720/59.94p, 640 x 480/59.94p *1, 1080/60p, 720/60p, 640 x 480/60p *2, 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3, 1080/30p, 720/30p, 640 x 480/30p *4, 1080/50p, 720/50p, 640 x 480/50p *5, 1080/25p, 720/25p?640 x 480/25p *6, 1080/23.98p, 720/23.98p?640 x 480/23.98p *7, 1080/24p, 720/24p?640 x 480/24p *8

*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.

*1 Frame Rate(USB Out) = 59.94 Hz

*2 Frame Rate(USB Out) = 60 Hz

*3 Frame Rate(USB Out) = 29.97 Hz

*4 Frame Rate(USB Out) = 30 Hz

*5 Frame Rate(USB Out) = 50 Hz

*6 Frame Rate(USB Out) = 25 Hz

*7 Frame Rate(USB Out) = 23.98 Hz

*8 Frame Rate(USB Out) = 24 Hz

Stream and Record formats

720/59.94p *1, *3, 720/60p *1, *4, 720/29.97p *1, *5, 720/30p *1, *6, 720/50p *1, *7, 720/25p *1, *8, 1080/59.94p *2, *3, 1080/60p *2, *4, 1080/29.97p *2, *5, 1080/30p *2, *6, 1080/50p *2, *7, 1080/25p *2, *8, 1080/23.98p *2, *9, 1080/24p *2, *10

*1 Output Format = 720p

*2 Output Format = 1080p

*3 Frame Rate (Stream/Record) = 59.94 Hz

*4 Frame Rate (Stream/Record) = 60 Hz

*5 Frame Rate (Stream/Record) = 29.97 Hz

*6 Frame Rate (Stream/Record) = 30 Hz

*7 Frame Rate (Stream/Record) = 50 Hz

*8 Frame Rate (Stream/Record) = 25 Hz

*9 Frame Rate (Stream/Record) = 23.98 Hz

*10 Frame Rate (Stream/Record) = 24 Hz

File Format: MP4

Codec:

H.264, target bitrate up to 20,000 kbps

AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps

File Format: WAV

Codec:

Linear PCM, 16 bits, 48 kHz, stereo

* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simultaneously.

* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously.

Video Player

File Format: MP4

Codec:

H.264, Average bit rate of 20,000 kbps or less, Maximum 1080/60p

AAC-LC, 16 bits, 48 kHz, stereo

* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simultaneously.

* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously.

Still Image:

Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.

PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color

JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color

* It can be stored up to 16 files in the internal memory.

* It can be exported in the SD Card and USB flash drive.

* PNG alpha channel supported.

Video Effects

Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types)

Composition: PinP x 4 (Square, Circle, Diamond), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key)

Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay

AUDIO

Audio Processing

Sample rate: 24 bits, 48 kHz

Number of Audio Channels

42 channels

Audio Formats

USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch

Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch

HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch

HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch

SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)

SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)

Audio Player

File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)

* It can be stored up to 16 tracks in the internal memory.

Audio Effects

Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing

Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay

Others: Output fade, Test tone output

COMMON SECTION

Recording Media

SDHC/SDXC card (commercially available)

USB Memory (commercially available)

* SDXC card is required for video recording.

Other Functions

Scene Memory (32 types)

Macro Control (100 types)

Sequencer Control (1,000 steps)

Sequencer Control

Panel lock function

EDID Emulator

Auto Switching

Auto Input Detect

Smart Tally

Remote Camera Control (Up to 12 units)

External Rec Control

Menu language (English, Japanese, Simplified chinese)

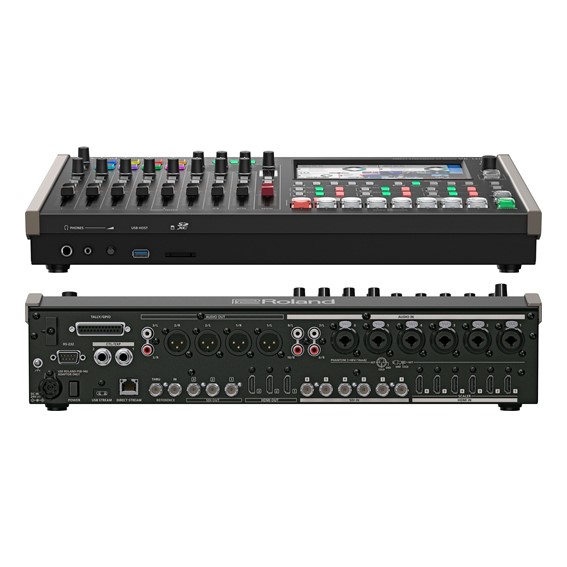

CONNECTORS

Video Input Connectors

HDMI IN 1–6: HDMI type A x 6

* HDCP Supported

* Multi-format Supported

SDI IN 1–6: BNC type x 6

* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

Video Output Connectors

HDMI OUT 1–3: HDMI type A x 3

* HDCP Supported

SDI OUT 1–3: BNC type x 3

* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

USB STREAM: USB Type-C (R)

Audio Input Connectors

Analog:

AUDIO IN 1–6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)

AUDIO IN 7/L, 8/R: RCA phono type

AUDIO IN 9/L, 10/R: RCA phono type

Digital:

USB STREAM: USB Type-C (R)

Bluetooth

HDMI IN 1–6: HDMI type A x 6

SDI IN 1–6: BNC type x 6

Audio Output Connectors

Analog:

AUDIO OUT 1: XLR type

AUDIO OUT 2: XLR type

AUDIO OUT 3: RCA phono type

PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type

Digital:

USB STREAM: USB Type-C (R)

HDMI OUT 1–3: HDMI type A x 3

SDI OUT 1–3: BNC type x 3

Other Connectors

USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad)

USB STREAM: USB Type-C (R) (for remote control from PC and iPad)

Bluetooth: for remote control from iPad

CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)

RS-232: DB-9 type (Male) (for Remote Control)

DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming and Remote Control)

Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level

AUDIO INPUT/OUTPUT CHARACTERISTICS

Input Level

AUDIO IN 1–6: -64–+4 dBu (Maximum: +24 dBu)

AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu)

AUDIO IN 9/L, 10/R: -10 dBu (Maximum: +10 dBu)

Input Impedance

AUDIO IN 1–6: 30 k ohms

AUDIO IN 7/L, 8/R: 7 k ohms

AUDIO IN 9/L, 10/R: 7 k ohms

Output Level

AUDIO OUT 1 (XLR): +4 dBu (Maximum: +24 dBu)

AUDIO OUT 2 (XLR): +4 dBu (Maximum: +24 dBu)

AUDIO OUT 3 (RCA): -10 dBu (Maximum: +10 dBu)

PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

AUDIO OUT 1 (XLR): 600 ohms

AUDIO OUT 2 (XLR): 600 ohms

AUDIO OUT 3 (RCA): 1 k ohm

PHONES: 56 ohms

Residual Noise Level (IHF-A, typ.)

-92 dBu (All faders: Min)

-89 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Min)

-62 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Max)

* Input 150 ohms terminate

* Output Connector: AUDIO OUT 1–2 (XLR)

-101 dBu (All faders: Min)

-100 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Min)

-75 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Max)

* Input 150 ohms terminate

* Output Connector: AUDIO OUT 3 (RCA)

OTHERS

Bluetooth

Ver 5.0

Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)

Codec: SBC (Support to the content protection of the SCMS-T method)

Display

Graphic Type, 7″, Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen)

Power Supply

AC Adaptor

Current Draw

3.0 A

Power Consumption

69 W

Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

Dimensions

437 (W) x 304 (D) x 109 (H) mm

17-1/4 (W) x 12 (D) x 4-5/16 (H) inches

482 (W) x 304 (D) x 109 (H) mm

19 (W) x 10 (D) x 4-1/16 (H) inches

* When rack mount angles are fitted.

Weight (excluding AC adaptor)

5.3 kg

11 lbs 11 oz

Accessories

Startup Guide

Leaflet “USING THE UNIT SAFELY”

AC adaptor

Power cord

Rack-mount angle x 2

Rack-mount angle mounting screw x 6

Options (sold separately)

Footswitch: BOSS FS-5U, FS-6, FS-7

Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
