Deskripsi Produk

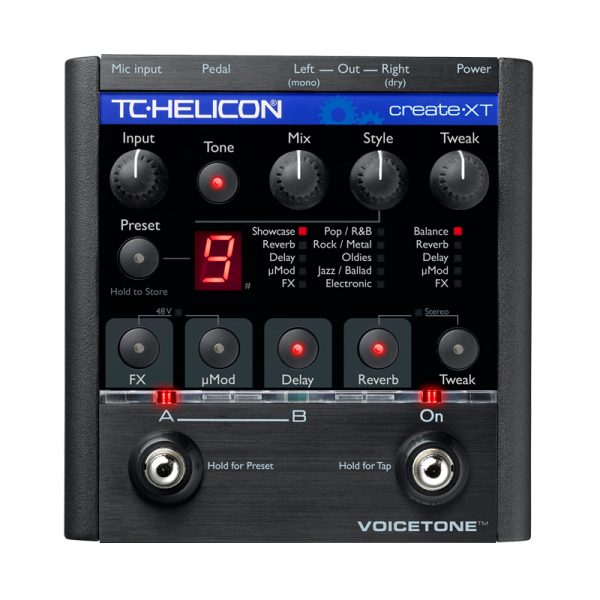

TC Electronic Voice Tone Create XT,Vocal Pedal
INCLUDED EFFECTS
- µMod
- Delay
- Reverb
- Transducer
- HardTune
- Tone
CONTROL
- 100 factory styles (10 banks each with 10 variations
- 20 user presets (10 presets each with part A & B)
- Dedicated effect on/off buttons
- Intelligent Tweak control
- Mic input level
DESIGN
SIZE
- Height: 5.25 inches (132 mm)
- Width: 5 inches (130 mm)
- Depth: 1.5 inches (41 mm)
WEIGHT
- Weight: 1.5 lb. (0.72 kg)
CONSTRUCTION
- Die cast steel and anodized extruded aluminum
- Ultra bright LEDs
CONNECTIONS
ANALOG INPUTS
- Connectors, balanced: Mic.: XLR
- Impedance: Balanced Mic.: 1 kOhm
- Mic Input Level @ 0 dBFS: -44dBu to 2dBu
- EIN @ Max Mic Gain Rg = 150 Ohm : -128 dBu
- Mic SNR: > 108 dB
- Phantom Power: 48V (switchable)
- A to D Conversion: 24 bit, 128 x oversampling bitstream, 110dB SNR A-weighted
ANALOG OUTPUTS
- D to A Conversion: 24 bit, 128 x oversampling bitstream, 115dB SNR A-weighted
- Connectors, balanced: XLR
- Output Impedance Balanced/ Unbalanced: 40 Ohm
- Output Range: Line: 2 dBu
- Dynamic Range: > 108 dB, 20 Hz to 20 kHz
- Frequency Response: 0/-0.3 dB, 20 Hz to 20 kHz
Berat | 1 kg |
---|
