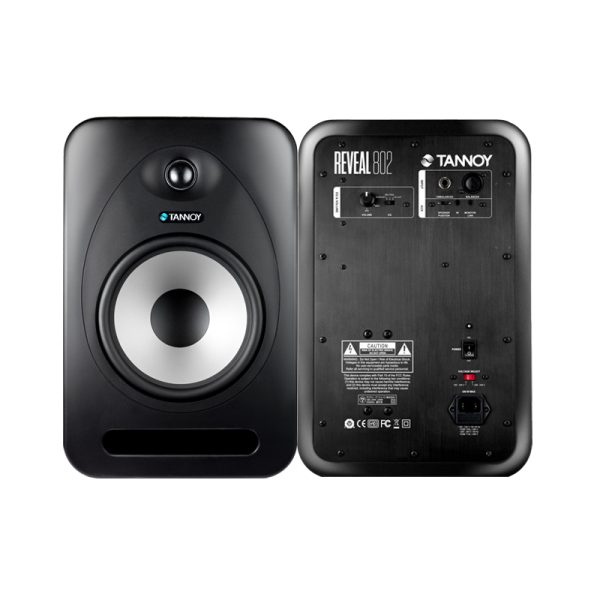

TC Tannoy Reveal 802 8Inch 100W Active Bi-Amp Studio Monitor
The Reveal 802 from Tannoy is an 8″ powered 2-way reference speaker that is designed for mixing and monitoring in the home, or the studio. It features an active crossover filter that aims to improve timing for a wider sweet spot, plus an accurately-tuned, front-firing bass port to help ensure optimal low frequency performance.
Equipped with a bi-amped, 100W amplifier that powers an 8″ woofer and a 1″ soft-dome tweeter, the Reveal 802 is designed to ensure maximum power, tonal clarity and low frequency response. It also features adjustable volume and EQ settings to customize the tuning of the speaker to compensate for acoustical deficiencies that may be present in your monitoring environment.
Included in the box of each monitor, is a 5 meter 1/8″ (3.5mm) jack cable. Combined with the AUX Link feature, this allows you to plug into your laptop or portable music player’s headphone output and link two Reveal 802 monitors for an instant stereo setup with no need for external interfaces. This is convenient for mixing on-the-go or for times when you just want to listen to some of your favorite music from your mobile device.
- Additional Features:
- •Balanced XLR and unbalanced 1/4″ inputs for maximum flexibility
•Rubber padded base for acoustical isolation
ncy Response | 42 Hz – 43 kHz |
Maximum SPL | 114 dB |
Equalization | Neutral HF setting, /-1.5 dB HF boost/cut |
Crossover Frequency | 1.8 kHz |
Low Frequency Alignment | Optimized front port |
Fuse Data | 100 – 120 V: T2AL / 250 V 200 – 240 V: T1AL / 250 V |
Max Power Consumption | 240 W |
Power Supply Compatibility | 100-120 V or 200-240 V (50 – 60 Hz) |
Inputs | Balanced: XLR, 20 kOhm Unbalanced: 1/4″ jack, 10 kOhm AUX Link: 1/8″ jack, 10 kOhm |
Output | AUX Link: 1/8″ jack |
THD | < 0.4% |
Amplified Output | LF/mid range: 75 W (RMS) HF: 25 W (RMS) |
Drivers | LF/mid range: 8″ (200 mm) HF: 1″ (25 mm), soft dome |
Dimensions | 15.35 x 10.00 x 11.81″ (390 x 254 x 300 mm) |
Weight | Not specified by manufacturer |
Packaging Info | |
---|---|
Package Weight | 31.4 lb |
Box Dimensions (LxWxH) | 20.9 x 16.1 x 14.5″ |
Berat | 15 kg |
---|
